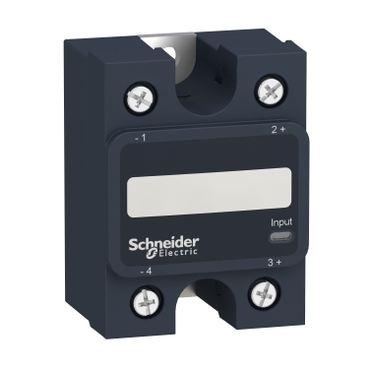

Solid State Relay | 90-280V AC Input | Zero-Crossing Control | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Solid State Relay is designed for silent and reliable switching, featuring a 90-280V AC input and zero-crossing control for precise operation. Ideal for industrial automation, HVAC control, and lighting systems, this compact relay ensures long operational life with no moving parts, making it perfect for building management systems and machinery control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Solid State Relay | 90-280V AC Input | Zero-Crossing Control | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP1A110BDT
Alternatively Known As: SSR, Solid State Switch, Electronic Relay, Clipsal SSR, SCHSSP1A110BDT Relay
Technical Specifications
- Input Voltage: 90-280V AC
- Output Voltage: 24-280V AC
- Load Current: 1A
- Control Type: Zero-crossing
- Mounting: DIN rail
- Isolation: Optical
- Operating Temperature: -30°C to +80°C
- Response Time: <20ms
- Dimensions (H x L x W): 90mm x 100mm x 22.5mm
- Weight: 0.12 kg
Key Features
- Solid state design for silent, reliable switching
- Long operational life with no moving parts
- Fast response time for precise control
- Compact DIN rail mountable housing
- Low control voltage requirement
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation systems
- HVAC control panels
- Lighting control
- Machinery and process control
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No mechanical wear reduces waste and extends product lifespan
- Low power consumption during operation
- Mercury-free and environmentally safe
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHSSP1A110BDT Solid State Relay is available for immediate purchase. Ideal for industrial automation, HVAC, and lighting control applications.
