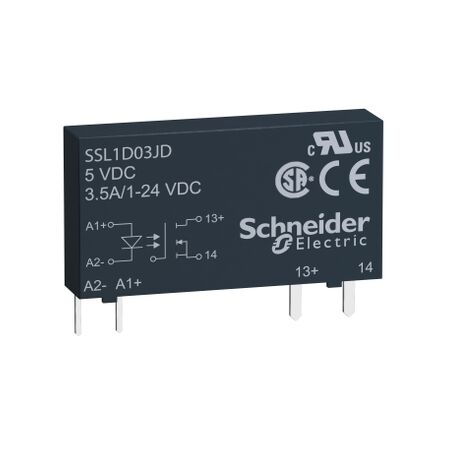

Solid State Slim Relay 3.5A | DC Switching 3-12V Input | Compact 6mm by Clipsal
Solid state slim relay with 3.5A DC switching and 3-12V input—ideal for industrial control cabinets and automation systems. Built for silent operation, with compact 6mm design and IP67 rating for durability.
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state slim relay, 3.5A, DC switching, input 3…12V DC, output 1...24V DC
Brand: Clipsal
SKU: SSL1D03JD
Alternatively Known As: Solid State Relay, Slim Relay, DC Relay, Plug-in Relay
- Rated current: 3.5A
- Control circuit voltage: 3...12V DC
- Output voltage: 1...24V DC
- Maximum operating frequency: 500 Hz
- Surge current: 9A for 10 ms
- Response time: 0.12 ms (turn-on), 0.1 ms (turn-off)
- Dielectric strength: 2500V for input/output
- Dimensions (H x L x W): 28mm x 15mm x 6mm
- Weight: 0.0041 kg
- Rated 3.5A with DC switching capability.
- Input voltage range of 3V to 12V DC.
- Output voltage range of 1V to 24V DC.
- Compact 6mm width design for space-saving.
- Silent operation with no moving contacts.
- IP67 rated for shock, vibration, and pollution resistance.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial: Control cabinets, automation systems, machinery
- Complies with UL and CE certifications.
- Energy-efficient design reduces power consumption.
1 year warranty against manufacturing defects.
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable DC switching.
