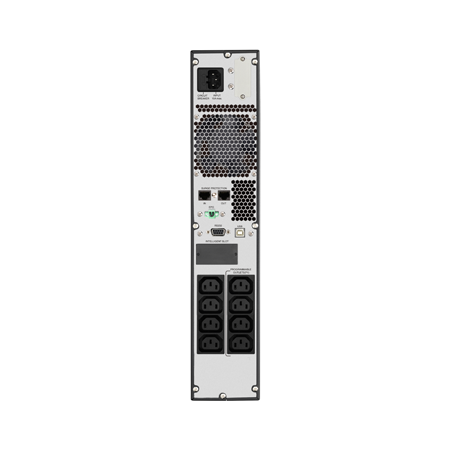

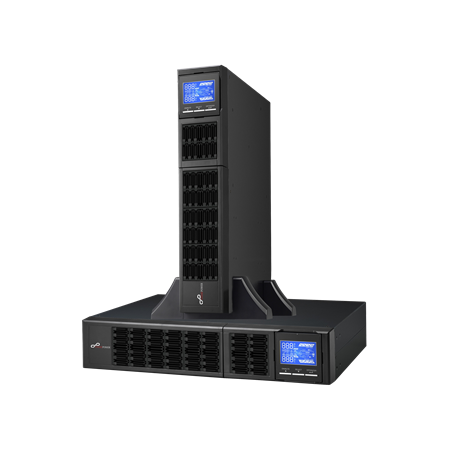

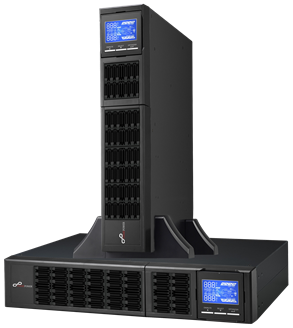

Sonata RT 1100 1100VA Pure Sinewave 2U Rack UPS Chase Power

BRAND: Chase Power
SKU: CP2201
$1,145.80 List price: $1,718.80
+ −
30 Days Return Electricians Unlock Trade Access
Chase Power Sonata RT 1100 pure sinewave UPS 1100VA/990W rack/tower 2U. Multi-OS power management for IT and comms.

Alternatively Known As: Sonata RT 1100 UPS, 1100VA Rack UPS, 2U Line-Interactive Pure Sinewave UPS

Technical Specifications
  • Capacity: 1100VA / 990W
  • Topology: Line-interactive pure sinewave
  • Input Voltage: 220/230/240VAC, auto-sensing
  • Input Voltage Range: 162–290VAC
  • Input Frequency: 50/60Hz, auto-sensing
  • Output Voltage: 220/230/240VAC
  • Output Frequency: 50Hz or 60Hz ±1Hz
  • Output Voltage Regulation: ±5% before battery alarm
  • Transfer Time: Typically 2–6ms, maximum 10ms
  • Waveform: Pure sine wave
  • Battery: 2 x 12V / 9Ah sealed batteries
  • Battery Recharge: Approximately 4 hours to 90% capacity
  • Efficiency: Up to 92% in battery mode
  • Noise Level: Less than 45dB
  • Operating Environment: 0–40°C, 0–90% RH non-condensing
  • Communications: USB and smart RS-232; optional SNMP and AS400
  • Power Connection: 10A power point required
  • Rack Height: 2U
  • Dimensions (H x L x W): 88mm x 420mm x 440mm
  • Weight: 16.3 kg
Key Features
  • Pure sinewave output for servers, networking and communications equipment
  • Rack or tower configurable 2U chassis
  • Hot-swappable, user-replaceable battery design
  • Rotatable LCD display for rack or tower viewing
  • Programmable power-management outlets to prioritise connected loads
  • Emergency power-off function
  • ECO operating mode to reduce energy consumption and heat generation
  • USB and RS-232 communications with optional SNMP management
  • Supports Windows, Linux, Unix and macOS operating systems
Professional Installation Requirements
  • Connect and configure the UPS in accordance with the manufacturer’s instructions. Rack installation, battery servicing and any site-specific mains electrical work should be performed by suitably qualified personnel and comply with applicable electrical installation requirements.
Applications
  • Server racks and network infrastructure
  • Telecommunications and communications equipment
  • IT and data-processing equipment
  • Surveillance and security systems
  • Mission-critical electronic equipment requiring pure sinewave backup power
  • Installations requiring USB, RS-232 or SNMP power management
Standards & Compliance
  • AS 62040.1:2019 — Uninterruptible power systems safety requirements; applicable UPS equipment standard
  • AS/NZS 3000 — Electrical installations, applicable to the installation and connection of the UPS
Environmental Benefits
  • ECO operating mode can reduce energy consumption and associated heat generation during operation
  • Hot-swappable and user-replaceable batteries can extend product service life and reduce premature equipment replacement
  • Sealed lead-acid batteries and electronic components can be recovered through appropriate battery and e-waste recycling programmes
Warranty Information

Chase Power states that its UPS products are supplied with a warranty and describes the warranty as matching or exceeding comparable brands; a specific warranty duration for the Sonata RT 1100 was not published.

Available Now

Available through Chase Power and authorised Australian distributors, subject to distributor stock levels.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
