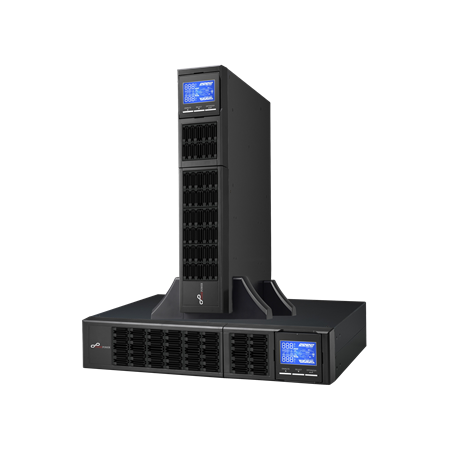

Sonata RT 1500 1500VA Pure Sinewave 2U Rack UPS Chase Power
Chase Power Sonata RT 1500 pure sinewave UPS 1500VA/1350W rack/tower 2U. Multi-OS power management for IT and comms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sonata RT 1500 UPS, 1500VA Rack UPS, 2U Rack-Mount UPS, Line-Interactive Pure Sinewave UPS
Technical Specifications
- UPS Topology: Line-interactive pure sinewave
- Rated Capacity: 1500VA / 1350W
- Nominal Input Voltage: 220/230/240VAC, 50/60Hz auto-sensing
- Input Voltage Range: 162–290VAC
- Output Voltage: 220/230/240VAC
- Output Frequency: 50Hz or 60Hz ±1Hz
- Output Waveform: Pure sinewave
- Voltage Regulation: ±5% before battery alarm
- Transfer Time: Typically 2–6ms, maximum 10ms
- Battery Configuration: 12V / 7Ah x 4, standard model
- Battery Recharge Time: Approximately 4 hours to 90% capacity
- Efficiency: Up to 91% in battery mode
- Display: Rotatable LCD showing operating status, load, battery, voltage, overload, fault and low-battery information
- Communications: USB and smart RS-232; optional SNMP and AS400 cards
- Management Software: ViewPower smart management software
- Protection: Overload, discharge and overcharge protection
- Connection: 10A input power point required
- Rack Height: 2U
- Operating Temperature: 0–40°C
- Operating Humidity: 0–90% RH, non-condensing
- Noise Level: Less than 45dB
- Rated output discrepancy: The manufacturer product page lists 1200W, while the manufacturer datasheet and supplied product description list 1350W; 1350W used for this enrichment. ([chasepower.com.au](https://chasepower.com.au/chasepowerups/line-interactive-pure-sinewave/sonata-rt-1500/))
- Dimensions (H x L x W): 88mm x 520mm x 440mm
- Weight: 23 kg
Key Features
- Pure sinewave output suitable for servers, NAS equipment, computers and communications systems

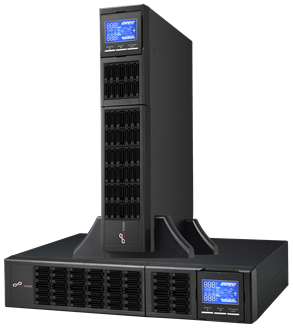

- Configurable for rack-mount or tower installation in a 2U chassis
- Hot-swappable, user-replaceable battery design
- Rotatable LCD display for rack or tower viewing
- Programmable power-management outlets to prioritise critical loads
- Emergency power off (EPO) function
- ECO operating mode to reduce energy consumption and heat generation
- USB and RS-232 communications with optional SNMP network management
- Supports Windows, Linux, Unix and Mac operating systems
- Supplied with rack-mount ears, tower stands, USB cable and Australian socket adaptor cable
Professional Installation Requirements
- Installation should be performed by suitably qualified electrical or IT infrastructure personnel. Connect to an appropriate 10A supply, provide adequate ventilation, secure the unit correctly for rack or tower use, and follow the manufacturer's instructions and applicable electrical installation requirements.
Applications
- Server and data-room power protection
- Telecommunications and networking equipment
- IT and communications systems requiring graceful shutdown capability
- Surveillance and security systems
- Mission-critical electronic equipment
- Applications requiring SNMP monitoring and remote power management
Standards & Compliance
- AS 62040.1.1-2003 (R2013) is the applicable Australian UPS safety standard for low-voltage electronic UPS equipment in operator-accessible areas; product-specific conformity is not stated by the manufacturer. ([codehub.building.govt.nz](https://codehub.building.govt.nz/resources/as-62040-1-1-2003-r2013))
- AS/NZS 3000:2018 may apply to the associated Australian electrical installation and connection requirements; product-specific compliance is not stated. ([nzta.govt.nz](https://nzta.govt.nz/assets/resources/intelligent-transport-systems/specifications/ITS-SPEC-UPS-202512-uninterruptable-power-systems-UPS.pdf))
Environmental Benefits
- ECO operating mode is intended to reduce energy consumption and heat generation during operation. ([chasepower.com.au](https://chasepower.com.au/chasepowerups/line-interactive-pure-sinewave/sonata-rt-1500/))
- High-efficiency operation can reduce wasted electrical energy compared with less efficient UPS designs. ([chasepower.com.au](https://chasepower.com.au/chasepowerups/line-interactive-pure-sinewave/sonata-rt-1500/))
- Hot-swappable and user-replaceable batteries can extend serviceability and reduce premature equipment replacement. ([chasepower.com.au](https://chasepower.com.au/chasepowerups/line-interactive-pure-sinewave/sonata-rt-1500/))
- The internal lead-acid batteries should be recycled through an approved battery-recycling scheme at end of life.
Warranty Information
Chase Power states that its UPS range is supplied with a warranty intended to match or exceed competing brands, but no specific warranty duration or terms for the Sonata RT 1500 were located. Confirm the applicable warranty with the authorised Australian distributor before purchase. ([chasepower.com.au](https://chasepower.com.au/wp-content/uploads/Chase_Power_UPS_Catalogue.pdf))
Available Now
Available through Chase Power and authorised Australian distributors, subject to current stock and product support arrangements. ([chasepower.com.au](https://chasepower.com.au/chasepowerups/line-interactive-pure-sinewave/sonata-rt-1500/))
