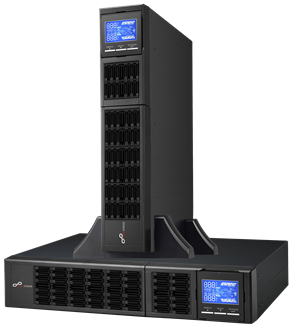

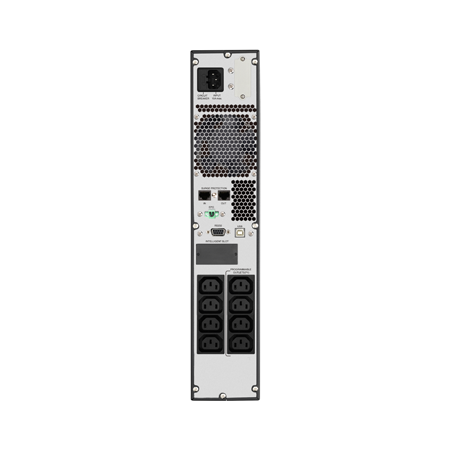

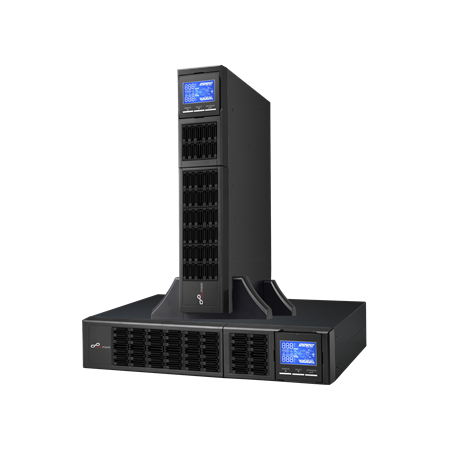

Sonata RT 2000 2000VA Pure Sinewave 2U Rack UPS Chase Power
Chase Power Sonata RT 2000 pure sinewave UPS 2000VA/1600W rack/tower 2U. Multi-OS power management for IT racks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sonata RT 2000 UPS, Chase Power 2U Rack UPS, 2000VA Pure Sinewave UPS
Technical Specifications
- UPS Topology: Line interactive pure sinewave
- Capacity: 2000VA / 1600W
- Output Waveform: Pure sine wave
- Form Factor: 2U rack or tower configurable
- Input Voltage: 220/230/240VAC, auto-sensing
- Input Voltage Range: 162–290VAC
- Frequency: 50/60Hz auto-sensing
- Transfer Time: Typically 2–6ms, maximum 10ms
- Battery Type: 12V 9Ah sealed lead-acid batteries
- Internal Batteries: 4
- Battery Recharge Time: Approximately 4 hours to 90% capacity
- Battery Mode Efficiency: Up to 92%
- Operating Temperature: 0–40°C
- Operating Humidity: 0–90% RH, non-condensing
- Noise Level: Less than 45dB
- Management Interfaces: USB and Smart RS-232
- Optional Communications: SNMP and AS400 cards
- Input Connection: 10A Australian power point
- Included Accessories: Input and output cables, Australian socket adaptor cable, USB cable, rack mounting ears, tower stands and user manual
- Dimensions (H x L x W): 88mm x 520mm x 440mm
- Weight: 25 kg
Key Features
- Pure sinewave output for servers, networking equipment and other sensitive loads
- Rack or tower-configurable 2U chassis
- Hot-swappable, user-replaceable battery design
- Rotatable LCD display for rack or tower installation
- Programmable power management outlets for load prioritisation
- Emergency power off function
- ECO operating mode to reduce energy consumption and heat generation
- USB and RS-232 communications with optional SNMP or AS400 connectivity
- Audible alarms for battery, overload, battery replacement and fault conditions
Professional Installation Requirements
- Connect to a suitable 10A Australian power point and install in accordance with the manufacturer's instructions and applicable electrical installation requirements. Rack installation, hard-wired alterations or integration into critical infrastructure should be completed by a suitably qualified electrical professional.
Applications
- Server and IT rack protection
- Telecommunications and networking equipment
- Surveillance and security systems
- Mission-critical computer equipment
- Applications requiring USB, RS-232 or SNMP power management
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems, Part 1: Safety requirements; applicable to UPS equipment, although specific Sonata RT 2000 certification was not stated in the available manufacturer information
- AS 62040.2 – Uninterruptible power systems, electromagnetic compatibility requirements, where applicable to the installed UPS system
- AS/NZS 3000 – Electrical installations, applicable to permanent electrical installation and connection work
Environmental Benefits
- ECO operating mode can reduce energy consumption and heat generation during operation
- High-efficiency battery operation can reduce wasted electrical energy
- Hot-swappable and user-replaceable batteries can extend the service life of the UPS and reduce premature equipment disposal
- Sealed lead-acid batteries should be recovered and recycled through an approved battery recycling programme
Warranty Information
Chase Power states that its UPS range is supplied with a warranty equal to or better than comparable UPS brands, but a specific warranty duration for the Sonata RT 2000 was not published in the available product information. Confirm the applicable warranty terms with Chase Power or the authorised distributor.
Available Now
Available through Chase Power and authorised Australian distributors, subject to current distributor stock.
