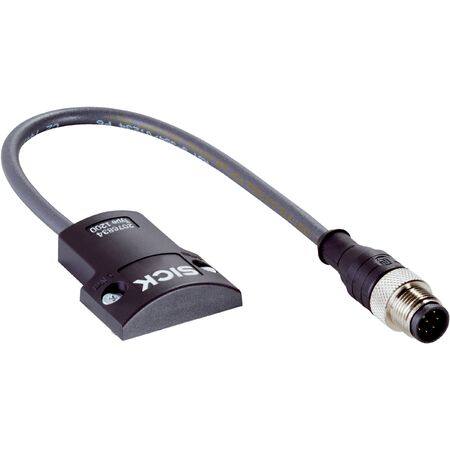

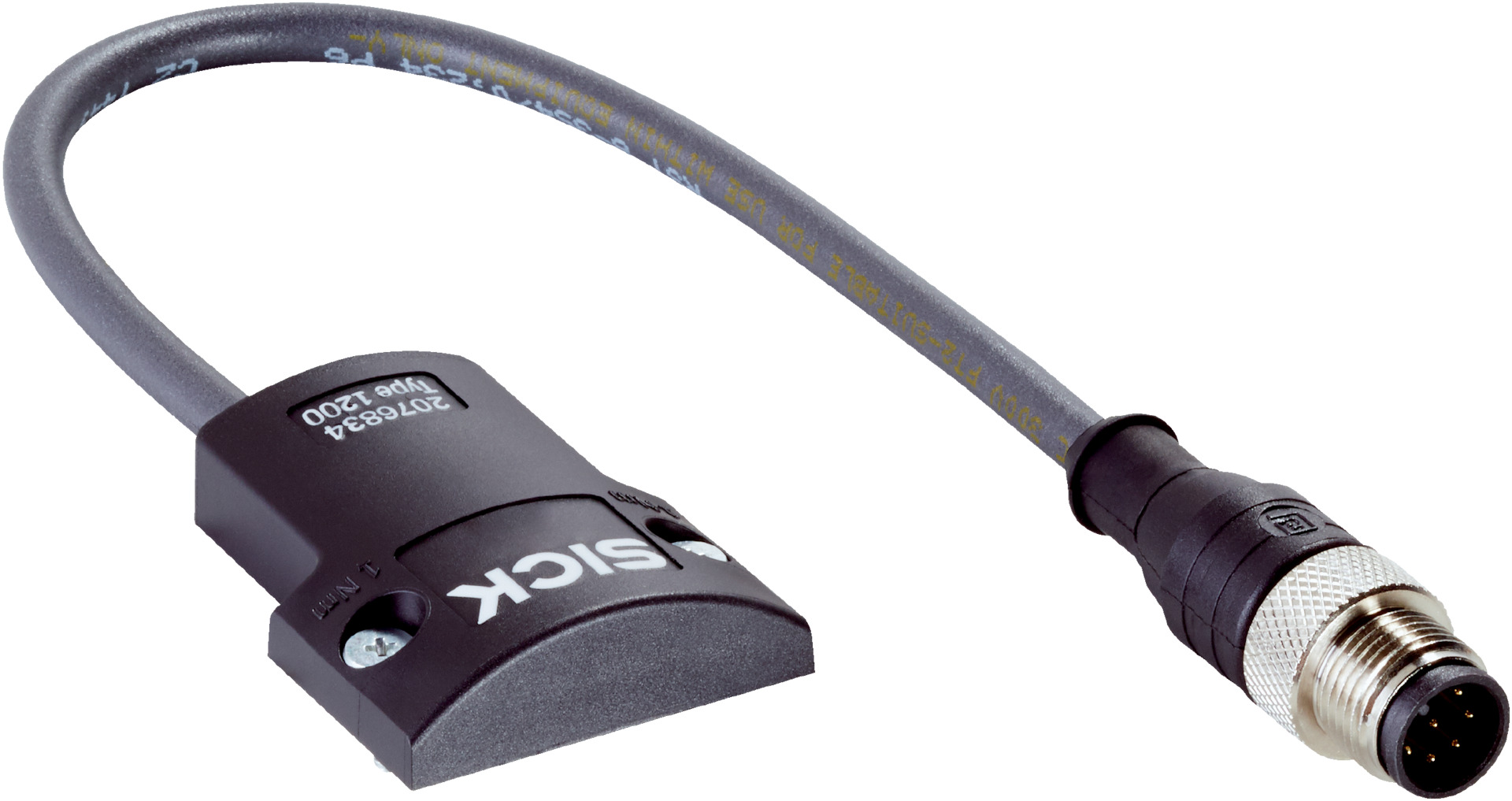

SP1 Safety Sensor | Automatic Calibration | 8-Pin M12 Connector | by SICK
The SP1 Safety Sensor is designed for industrial automation safety systems, featuring automatic calibration of protective field width and a robust 8-pin M12 connector. Ideal for machine protection and monitoring, this sensor ensures compliance with safety standards while enhancing operational efficiency in factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable length: 200 mm
- Cable diameter: 5 mm
- System connection: Male connector M12, 8-pin
- Extension connection: None
- Configuration method: DIP switch
- Dimensions (H x L x W): 30mm x 80mm x 30mm
- Weight: 0.2 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) for enhanced monitoring
- System connection via Male M12, 8-pin connector
- Configuration via DIP switch
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards.
Applications
- Industrial automation safety systems
- Machine protection and monitoring
- Factory automation requiring protective field sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient machine operation by ensuring safety and reducing downtime
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SP1-1200 Safety Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
