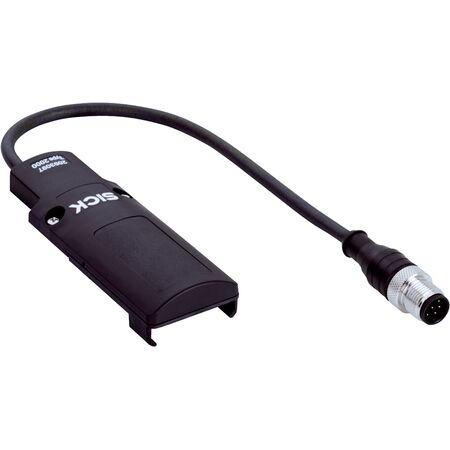

SP2-2000 Safety Sensor | Dynamic Protective Field Width | Smart Box Detection | by SICK
The SP2-2000 Safety Sensor is designed for industrial safety systems, featuring dynamic protective field width and Smart Box Detection to differentiate between persons and materials. With a robust design and energy-efficient operation, it's perfect for machine protection and automation safety monitoring, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- System connection: Plug, M12, 5-pin with 200 mm cable length and 5 mm cable diameter
- Extension connection: None
- Configuration method: DIP switch
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Protective operation with automatic calibration of protective field width
- Dynamic protective field width during operation
- Sender with reduced scanning range
- Differentiation between person and material with Smart Box Detection
- System connection via Plug, M12, 5-pin
- Configuration via DIP switch
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards.
Applications
- Industrial safety systems
- Machine protection
- Automation safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SP2-2000 Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
