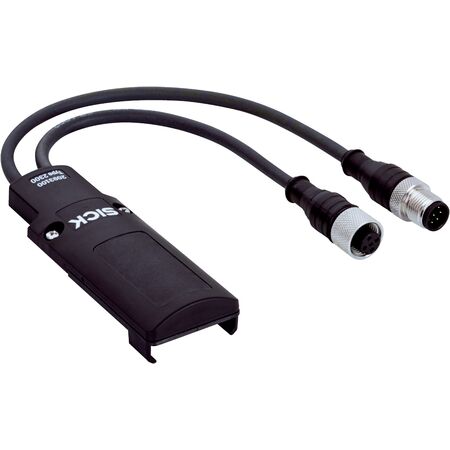

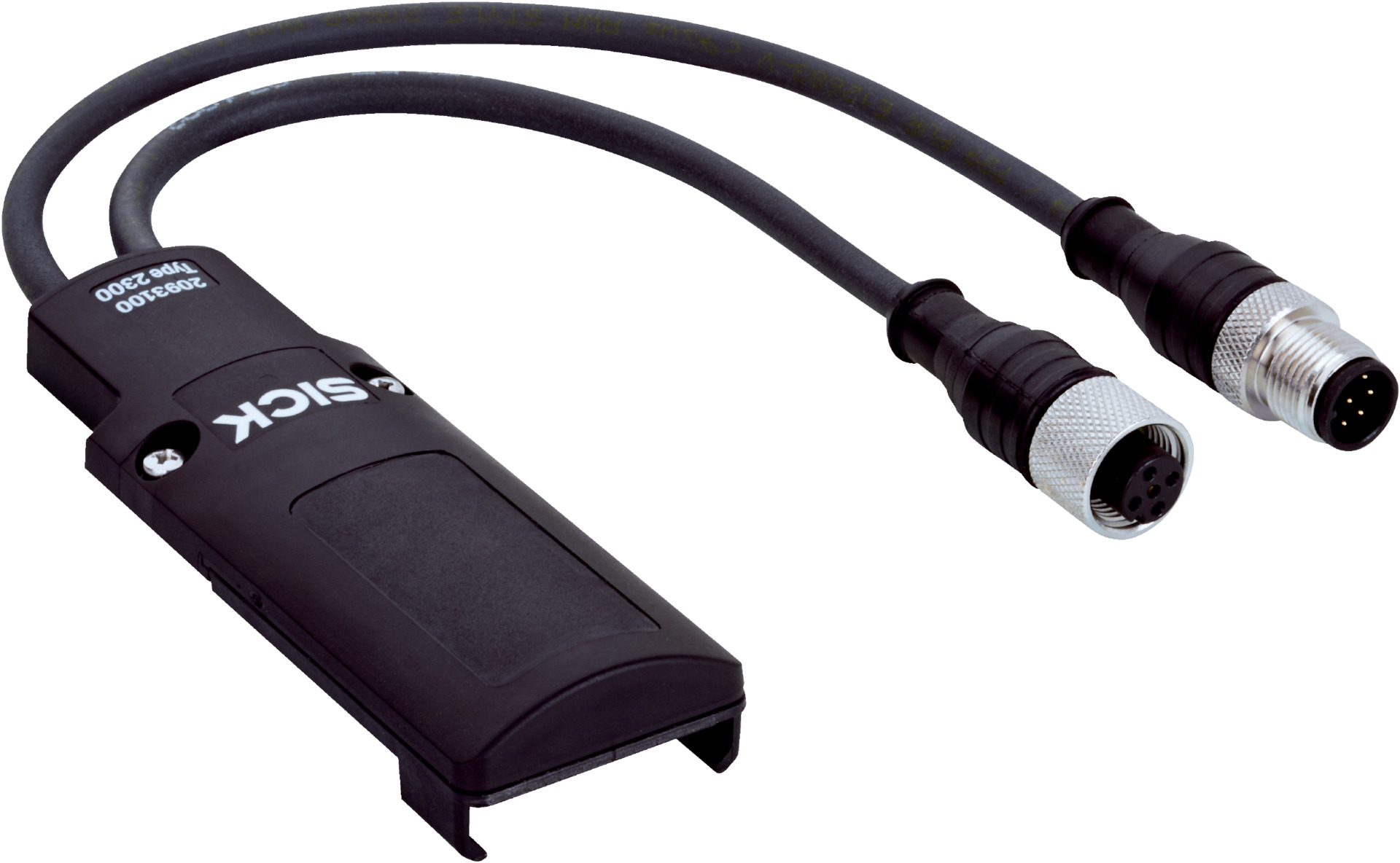

SP2-2300 Safety Sensor Connector | 24V DC | M12 Male & Female Connectors | Smart Presence Detection | by SICK
The SP2-2300 Safety Sensor Connector is designed for industrial automation safety systems, featuring a 24V DC supply voltage and M12 male and female connectors for easy integration. Ideal for machine safety monitoring and presence detection, it offers smart features like dynamic protective field width and automatic calibration, ensuring enhanced safety and efficiency in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable length system connection: 150 mm, cable diameter: 5 mm
- Cable length extension connection: 150 mm, cable diameter: 5 mm
- Dimensions (H x L x W): 30mm x 150mm x 50mm
- Weight: 0.2 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- System connection via Male connector M12, 8-pin
- Extension connection via Female connector M12, 5-pin
- IO-Link possible on the extension connection
- DIP switch configuration method
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
- Smart presence detection and reduced resolution
- Dynamic protective field width during operation
- Sender with reduced scanning range
- Differentiation between person and material
- 2-signal muting and Smart Box Detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical connections to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine safety monitoring
- Presence detection in manufacturing environments
- Protective field width calibration and monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient machine operation through smart presence detection
- Enhances safety to reduce downtime and waste from accidents
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SP2-2300 Safety Sensor System Plug is available for immediate purchase, ideal for industrial automation and machine safety applications.
