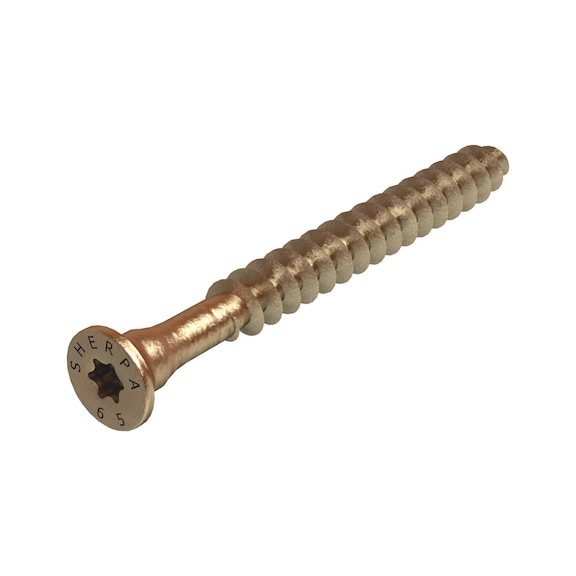

Special System Screw for Push-in Connector | M6.5 Diameter | 70mm Full Thread | Countersunk TX25 | @Pack of 25 | by Wurth
Special system screws designed for wood-to-wood connections, featuring a 6.5 mm nominal diameter and a 70 mm full thread length. Ideal for professional installations, these screws ensure optimum initial bite and reduced splitting risk, complying with ETA-12/0067 for guaranteed load-bearing values. Perfect for construction and furniture assembly, they offer durability with a zinc plated surface.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Special System Screw for Push-in Connector | M6.5 Diameter | 70mm Full Thread | Countersunk TX25 | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 681352305
Alternatively Known As: Wood connector screw, Push-in connector screw, Special system wood screw, Countersunk wood screw M6.5
Technical Specifications
- Type description: M
- Nominal diameter: 6.5 mm
- Length: 85 mm
- Head type: Countersunk head
- Head diameter: 10 mm
- Head height: 3 mm
- Internal drive: TX25
- Thread design: Full thread
- Thread length: 70 mm
- Core diameter: 3.25 mm
- Material: Steel
- Surface: Zinc plated yellow
- Product weight (per item): 10.3 g
- Dimensions (H x L x W): n/a mm x 85mm x n/a mm
- Weight: 0.01 kg
Key Features
- Special system screws designed for wood/wood connections
- Half-tip for optimum initial screw bite and reduced splitting risk
- Reinforced countersunk screw head
- Full thread design with 70 mm thread length
- Fits perfectly into screw holes of respective connectors
- Complies with ETA-12/0067 for guaranteed load-bearing values
Professional Installation Requirements
- Installation should be performed by professionals familiar with wood connector systems and ETA-12/0067 approvals to ensure correct load-bearing performance.
Applications
- Attaching and locking wood-to-wood connections
- Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plated surface extends product life reducing replacement frequency
- Steel material is recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for wood-to-wood connection applications in construction and furniture assembly.
