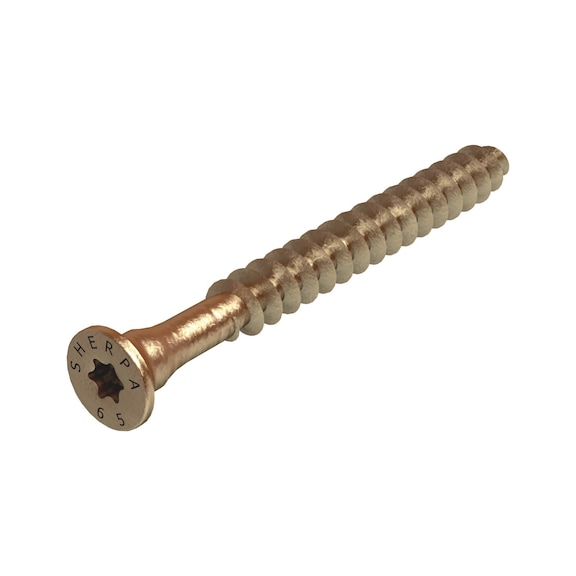

Special System Screw for Push-in Connector | M6.5 | TX25 Drive | Zinc Plated | @Pack of 50 | by Wurth
Special system screw designed for push-in connectors, featuring a 6.5 mm diameter and TX25 drive for optimal performance. Ideal for wood-to-wood connections in construction and woodworking projects, this screw ensures secure fastening with its full thread design and reinforced countersunk head. Built for durability and compliance with load-bearing specifications, it's perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Special System Screw for Push-in Connector | M6.5 | TX25 Drive | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 681352284
Alternatively Known As: Wood connector screw, Push-in connector screw, Special system screw M6.5, TX25 wood screw, Zinc plated wood screw
Technical Specifications
- Type description: M
- Nominal diameter: 6.5 mm
- Length: 65 mm
- Head type: Countersunk head
- Head diameter: 10 mm
- Head height: 3 mm
- Internal drive: TX25
- Thread design: Full thread
- Thread length: 50 mm
- Core diameter: 3.25 mm
- Material: Steel
- Surface: Zinc plated yellow
- Product weight (per item): 7.715 g
- Dimensions (H x L x W): n/a mm x 65mm x n/a mm
- Weight: 0.008 kg
Key Features
- Designed for wood/wood connections with certified load-bearing values according to ETA-12/0067
- Half-tip for optimum initial screw bite and reduced splitting risk due to pre-drilling effect
- Reinforced countersunk screw head for durability
- Full thread design for secure fastening
- Fits perfectly into the screw hole of respective connectors
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with load-bearing specifications and connector compatibility.
Applications
- Attaching and locking wood-to-wood connections
- Use with specific wood connectors as per ETA-12/0067 approval
- Suitable for construction and woodworking projects requiring certified load-bearing screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for construction and woodworking applications requiring certified wood connector screws.
