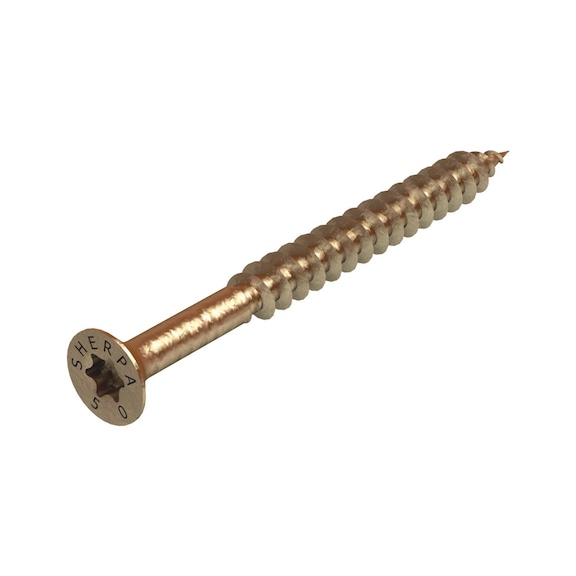

Special System Screw for Push-In Connector | TX20 Drive | Zinc Plated Yellow | @Pack of 50 | by Wurth

BRAND: Wurth
SKU: 681352283
$42.60 List price: $53.50
50 PCS ($0.85 per PCS)
+ −
30 Days Return Delivery Options
The Special System Screw for Push-In Connector is designed for secure wood-to-wood connections, featuring a TX20 drive and a durable zinc plated yellow finish. Ideal for professional wood construction, this screw ensures optimum initial bite and reduced splitting risk, making it perfect for use with specific wood connectors as per ETA-12/0067 approval.

Product Name/Title: Special System Screw for Push-In Connector | TX20 Drive | Zinc Plated Yellow | @Pack of 50 | by Wurth

Brand: Wurth

SKU: 681352283

Alternatively Known As: Wood connector screw, special system screw, push-in connector screw, TX20 wood screw

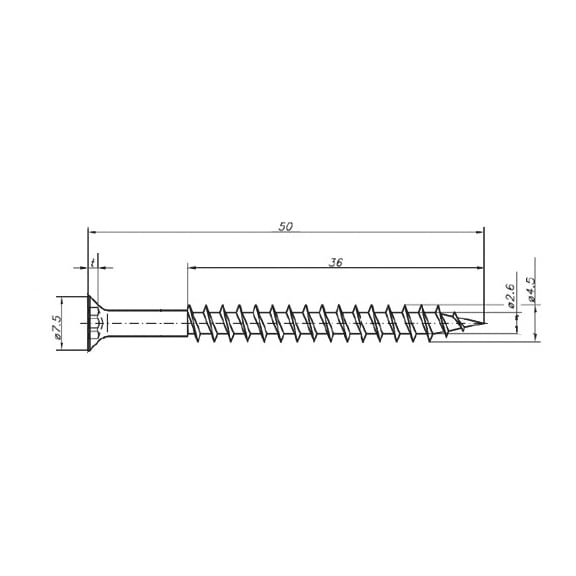

Technical Specifications
  • Type description: XS/S
  • Nominal diameter: 4.5 mm
  • Length: 50 mm
  • Head type: Countersunk head
  • Head diameter: 7.5 mm
  • Head height: 2.8 mm
  • Internal drive: TX20
  • Thread design: Partial thread
  • Thread length: 36 mm
  • Core diameter: 2.6 mm
  • Material: Steel
  • Surface: Zinc plated yellow
  • Product weight (per item): 3.065 g
  • Dimensions (H x L x W): 2.8mm x 50mm x 7.5mm
  • Weight: 0.003 kg
Key Features
  • Designed for wood/wood connections
  • Half-tip for optimum initial screw bite and reduced splitting risk
  • Reinforced screw head for durability
  • Fits perfectly into the screw hole of respective connectors
  • Complies with ETA-12/0067 for guaranteed load-bearing values
Professional Installation Requirements
  • Installation by a qualified tradesperson is recommended to ensure compliance with load-bearing specifications and connector compatibility.
Applications
  • Attaching and locking wood-to-wood connections
  • Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Zinc plating provides corrosion resistance extending product life, reducing replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to Wurth's warranty policy.

Available Now

Available for immediate purchase, ideal for professional wood construction and connector applications.
