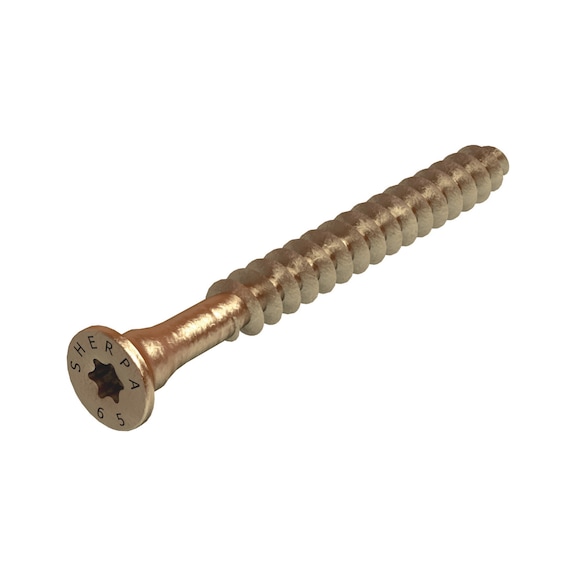

Special System Screw for Push-In Connector | TX25 Drive | Zinc Plated Yellow | @Pack of 25 | by Wurth

BRAND: Wurth
SKU: 681352306
$85.30 List price: $107.20
25 PCS ($3.41 per PCS)
+ −
30 Days Return Delivery Options
Special system screw designed for push-in connectors, featuring a TX25 drive and a durable zinc plated yellow surface. Ideal for wood-to-wood connections, this screw ensures optimum initial bite and reduced splitting risk, making it perfect for professional installations in wood construction and furniture assembly.
Technical Specifications
  • Type description: M
  • Nominal diameter: 6.5 mm
  • Length: 105 mm
  • Head type: Countersunk head
  • Head diameter: 10 mm
  • Head height: 3 mm
  • Internal drive: TX25
  • Thread design: Full thread
  • Thread length: 90 mm
  • Core diameter: 3.25 mm
  • Material: Steel
  • Surface: Zinc plated yellow
  • Product weight (per item): 12.925 g
  • Dimensions (H x L x W): 3mm x 105mm x 10mm
  • Weight: 0.013 kg
Key Features
  • Designed for wood/wood connections
  • Half-tip for optimum initial screw bite and reduced splitting risk
  • Reinforced countersunk screw head
  • Full thread design
  • Fits perfectly into screw holes of respective connectors
  • Complies with ETA-12/0067 for guaranteed load-bearing values
Professional Installation Requirements
  • Installation should be performed by professionals familiar with wood connector systems and ETA-12/0067 approvals to ensure load-bearing specifications are met.
Applications
  • Attaching and locking wood-to-wood connections
  • Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable zinc plated surface extends product life reducing replacement frequency
  • Steel material is recyclable
Warranty Information

Standard manufacturer warranty applies; please refer to Wurth's warranty policy.

Available Now

Available for immediate purchase, ideal for wood construction and furniture assembly requiring certified load-bearing connections.
