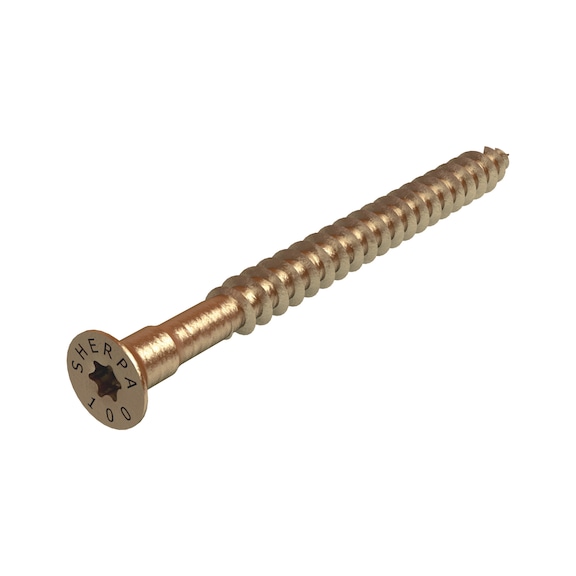

Special System Screw for Push-in Connector | TX30 Drive | Zinc Plated Yellow | Full Thread Design | @Pack of 25 | by Wurth
Special system screw designed for push-in connectors, featuring a TX30 drive and a reinforced countersunk head. Ideal for wood-to-wood connections, this screw ensures optimum initial bite and reduced splitting risk, making it perfect for construction and woodworking applications. With a full thread design and compliance with ETA-12/0067, it guarantees load-bearing values for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Special System Screw for Push-in Connector | TX30 Drive | Zinc Plated Yellow | Full Thread Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 681352285
Alternatively Known As: Wood connector screw, Push-in connector screw, Special system screw TX30, Countersunk wood screw 8x100
Technical Specifications
- Type description: L
- Nominal diameter: 8 mm
- Length: 100 mm
- Head type: Countersunk head
- Head diameter: 13 mm
- Head height: 4 mm
- Internal drive: TX30
- Thread design: Full thread
- Thread length: 80 mm
- Core diameter: 5.3 mm
- Material: Steel
- Surface: Zinc plated yellow
- Product weight (per item): 21.7 g
- Dimensions (H x L x W): 4mm x 100mm x 13mm
- Weight: 0.022 kg
Key Features
- Designed for wood/wood connections
- Half-tip for optimum initial screw bite and reduced splitting risk
- Reinforced countersunk screw head
- Full thread design with 80 mm thread length
- Fits perfectly into screw holes of respective connectors
- Complies with ETA-12/0067 for guaranteed load-bearing values
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct use with compatible connectors and to meet load-bearing specifications.
Applications
- Attaching and locking wood-to-wood connections
- Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination (relevant for workplace safety in construction applications)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for wood-to-wood connection applications in construction and woodworking.
