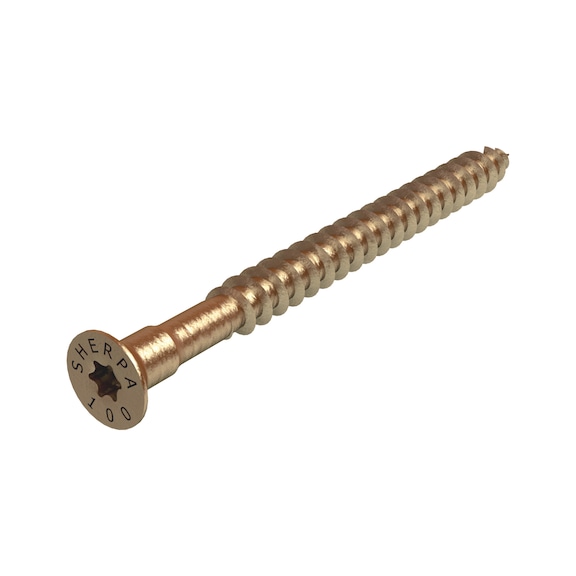

Special System Screw for Push-in Connector | TX30 Drive | Zinc Plated Yellow Steel | Full Thread Design | @Pack of 25 | by Wurth
The Special System Screw for Push-in Connectors is designed for secure wood-to-wood connections, featuring a TX30 drive and a full thread design for optimal fastening. Made from durable zinc plated yellow steel, it minimizes corrosion and ensures long-lasting performance. Ideal for professional installations, this screw is perfect for construction and woodworking applications, providing reliable strength and compliance with ETA-12/0067 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Special System Screw for Push-in Connector | TX30 Drive | Zinc Plated Yellow Steel | Full Thread Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 681352308
Alternatively Known As: Wood connector screw, Push-in connector screw, Special system screw TX30, Countersunk head wood screw
Technical Specifications
- Type description: L
- Nominal diameter: 8 mm
- Length: 140 mm
- Head type: Countersunk head
- Head diameter: 13 mm
- Head height: 4 mm
- Internal drive: TX30
- Thread design: Full thread
- Thread length: 120 mm
- Core diameter: 5.3 mm
- Material: Steel
- Surface: Zinc plated yellow
- Product weight (per item): 29.319 g
- Dimensions (H x L x W): 4mm x 140mm x 13mm
- Weight: 0.029 kg
Key Features
- Designed for wood/wood connections
- Half-tip for optimum initial screw bite and reduced splitting risk
- Reinforced screw head for durability
- Fits perfectly into screw holes of respective connectors
- Full thread design for secure fastening
- Zinc plated yellow steel for corrosion resistance
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with ETA-12/0067 and optimal load-bearing performance.
Applications
- Attaching and locking wood-to-wood connections
- Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plated steel reduces need for frequent replacements
- Ensures strong connections reducing material waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for wood-to-wood connection applications in construction and woodworking.
