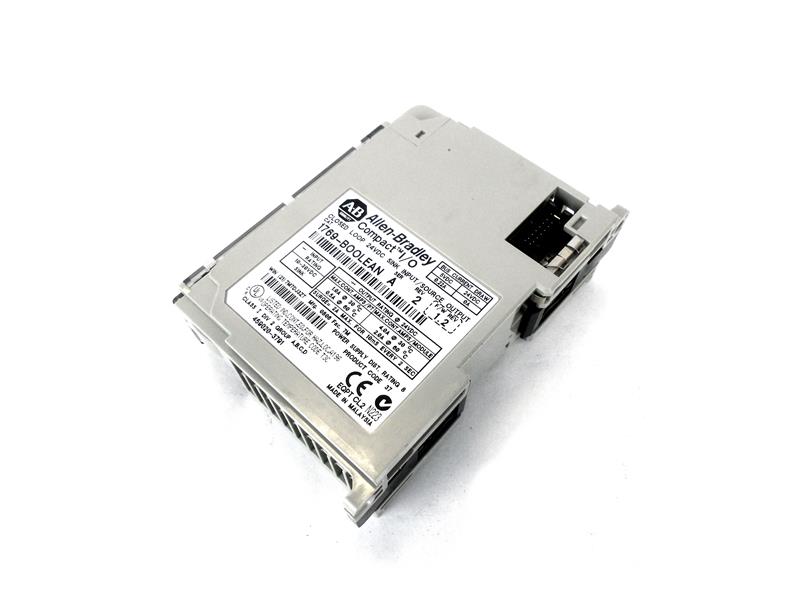

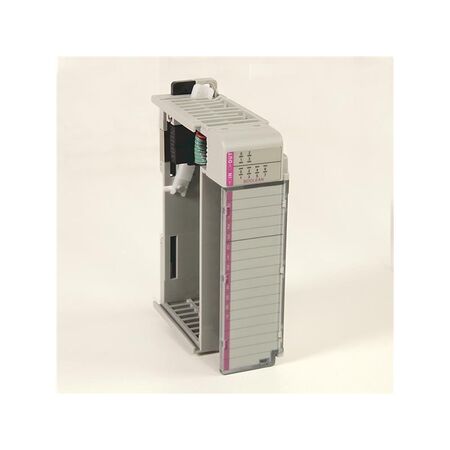

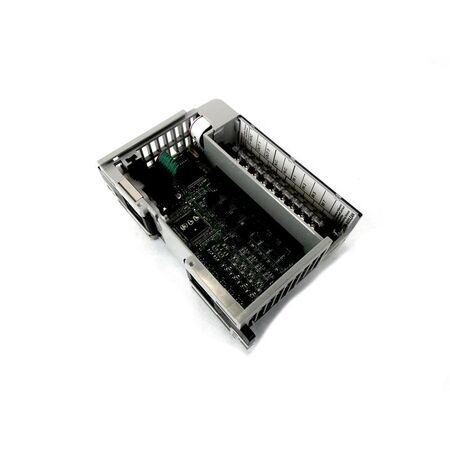

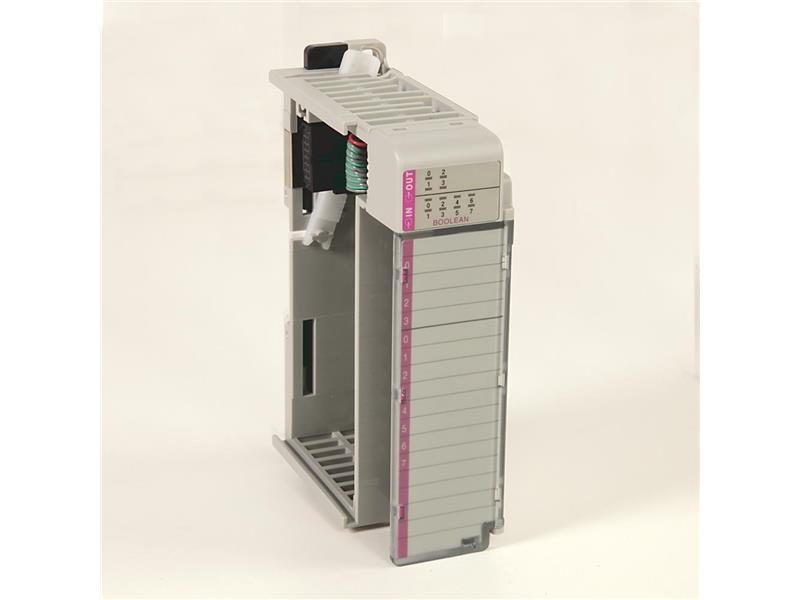

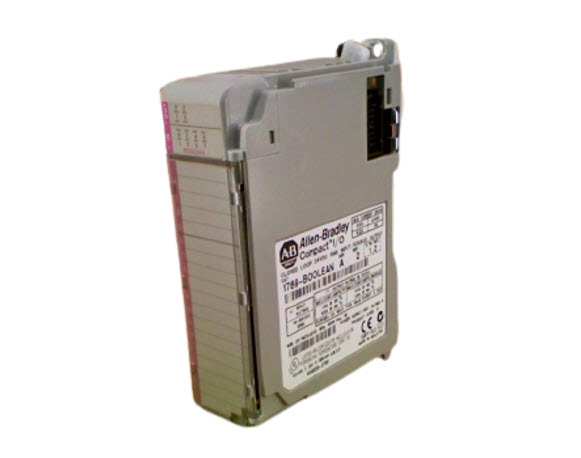

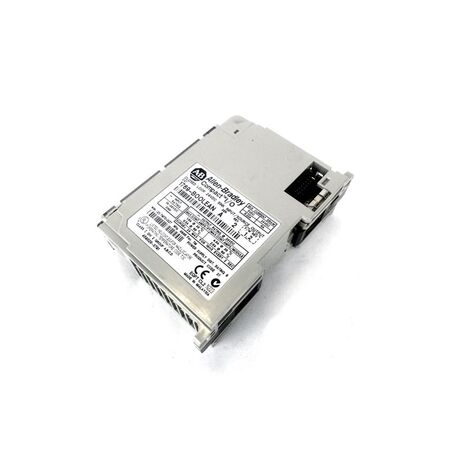

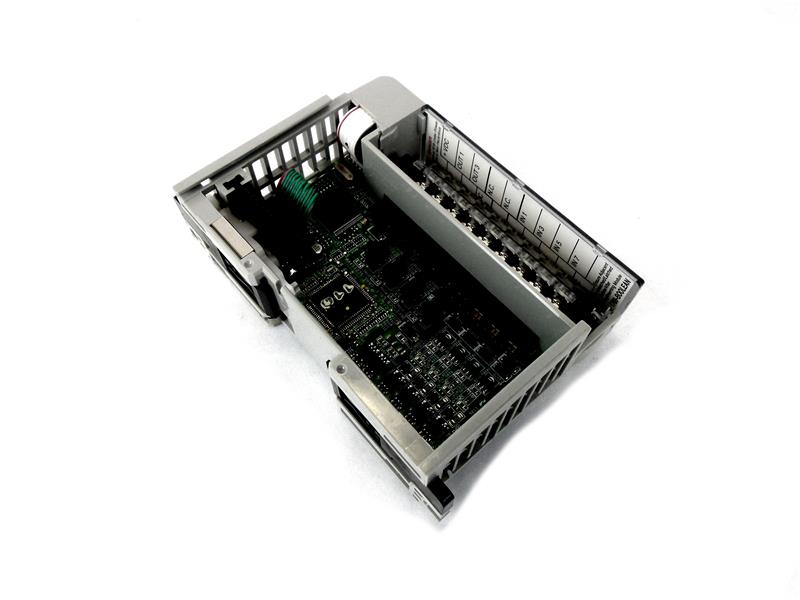

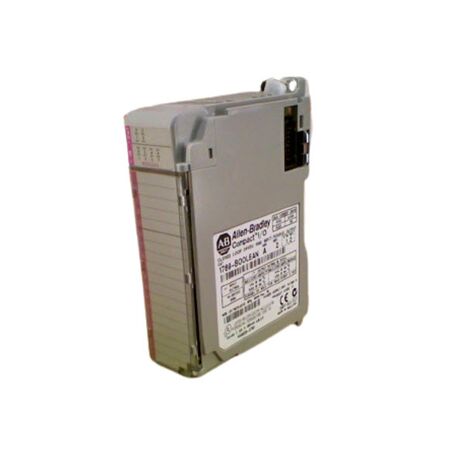

Product Name/Title: Allen-Bradley 1769BOOLEAN Specialty CompactLogix Module
Brand: Allen-Bradley
SKU: 1769BOOLEAN
Alternatively Known As: 1769 BOOLEAN Module, Allen-Bradley Boolean I/O Module, CompactLogix Boolean Specialty Module
Technical Specifications
- 8 real inputs at 10-30VDC
- 8 virtual inputs
- 4 sourcing outputs rated 0.5A at 20.4-26.4VDC
- Closed loop time of 1 ms
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- 8 real inputs operating at 10-30VDC
- 8 virtual inputs for flexible control
- 4 sourcing outputs rated at 0.5A @ 20.4-26.4VDC
- Closed loop time of 1 ms for fast response
Professional Installation Requirements
- Installation should be performed by a qualified automation technician or electrician familiar with CompactLogix systems.
Applications
- Industrial automation control systems
- Manufacturing process control
- Factory automation with CompactLogix controllers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient automation reducing energy waste in industrial processes
Warranty Information
Factory warranty does not apply. Radwell provides a 2-year warranty.
Available Now
The Allen-Bradley 1769BOOLEAN Specialty CompactLogix Module is discontinued by the manufacturer but available for immediate purchase through authorized distributors. Ideal for industrial automation upgrades and replacements.
