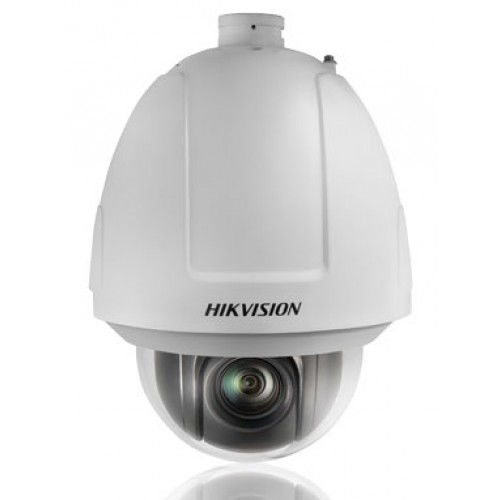

Speed Dome Camera 2MP 32X IR Hikvision
Hikvision speed dome camera features 2MP resolution, 32X zoom and IR. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2MP PTZ Camera, 32x IR Speed Dome, Outdoor Network Speed Dome Camera
Technical Specifications
- Model: DS-2DE7232IW-AE
- Resolution: Up to 1920 x 1080 pixels
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Optical Zoom: 32x
- Digital Zoom: 16x
- Lens: 4.8–153 mm motorised varifocal lens
- IR Distance: Up to 150 m
- Wide Dynamic Range: 120 dB
- Video Compression: H.265+, H.265, H.264+ and H.264
- Pan Range: 360° endless
- Tilt Range: -15° to 90°
- Preset Positions: Up to 300
- Network Interface: RJ-45 10/100 Ethernet with Hi-PoE support
- Storage: MicroSD, SDHC and SDXC support up to 256 GB
- Power Supply: 24 VAC or Hi-PoE
- Maximum Power Consumption: 40 W
- Operating Temperature: -30°C to 65°C
- Ingress Protection: IP66
- Audio: One audio input and one audio output
- Alarm Interface: Two alarm inputs and one alarm output
- Dimensions (H x L x W): 353.4mm x 220mm x 220mm
- Weight: 4.5 kg
Key Features
- 2MP Full HD imaging for outdoor CCTV surveillance
- 32x optical zoom for monitoring distant subjects and locations
- Integrated infrared illumination with coverage up to 150 m
- Smart tracking and analytics including intrusion and line-crossing detection
- Electronic image stabilisation, defog, 3D noise reduction and 120 dB WDR
- Supports H.265+ compression to reduce network bandwidth and storage requirements
- 360° endless pan movement and high-speed PTZ control
- ONVIF and Hikvision platform compatibility
- IP66-rated outdoor housing with surge and transient protection
Professional Installation Requirements
- Installation should be performed by suitably qualified CCTV and electrical tradespeople. Any mains-connected power supply, 24 VAC wiring, structural mounting and associated electrical work must comply with applicable Australian requirements, including AS/NZS 3000 where relevant. Configure network security, access credentials and recording equipment during commissioning.
Applications
- Outdoor commercial CCTV installations
- Perimeter and boundary surveillance
- Road, rail, transport and infrastructure monitoring
- Car parks, public spaces and commercial premises
- Large sites requiring long-range pan, tilt and zoom coverage
- Industrial facilities, logistics yards and campuses
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for use in security applications
- AS/NZS 3000:2018 - Electrical installations, applicable to associated electrical installation work
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- Long-range PTZ coverage can reduce the number of fixed cameras required for some surveillance layouts
- IP66 construction and durable metal housing can support extended service life and reduce replacement waste
- Electronic components and packaging should be managed through appropriate electronic-waste and recycling channels at end of life
Warranty Information
Warranty is subject to Hikvision Australia terms and the authorised distributor's conditions. Hikvision's published five-year warranty applies only to specified premium project-oriented product series; this model's exact warranty should be confirmed with the supplying distributor before purchase.
Available Now
Available through Hikvision and authorised Australian CCTV, security and electrical distributors, subject to model availability and regional support.
