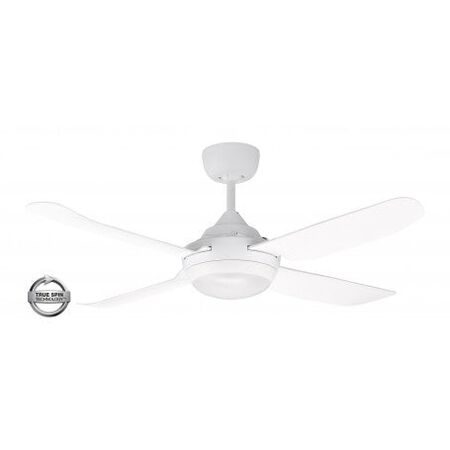

Spinika 1300mm 4 Blade Ceiling Fan LED Satin White Ventair
52"/1300mm Glass Fibre 4 Blade Ceiling Fan in Satin White with Tri-Colour Step Dimmable LED Light by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spinika 52-inch Ceiling Fan, Ventair SPN1304WH-L, 1300mm Glass Fibre Composite Ceiling Fan
Technical Specifications
- Model: SPN1304WH-L
- Fan Type: AC True Spin motor
- Colour: Satin White
- Blade Count: 4
- Blade Material: Glass fibre composite
- Fan Power: 20/38/65 W
- Air Movement: 6,480/10,440/15,000 m³/h
- Fan Speed: 100/160/220 rpm
- Light Type: LED panel
- Light Power: 20 W
- Light Output: 2,050 lm
- Light Dimming: 4-step dimming from 100% to 25%
- Colour Temperature: Warm 3,000 K, natural 4,200 K and cool 6,500 K
- Voltage: 220–240 V AC
- Frequency: 50 Hz
- Airflow Direction: Reversible for summer and winter operation
- Mounting Angle: 0–18°
- Remote Control: Compatible with Ventair SPNRFR remote control
- Included Control: Three-speed wall controller
- Dimensions (H x L x W): 362mm x 1320mm x 1320mm
- Weight: 7.65 kg
Key Features
- 1300mm, 52-inch sweep suitable for medium to large rooms
- Glass fibre composite blades provide strength and durability
- Tri-colour LED panel with selectable warm, natural and cool light
- Four-step light dimming from 100% to 25%
- Reversible airflow for summer and winter use
- ECO speed setting helps reduce operating power while maintaining airflow
- Corrosion-resistant and UV-protected components for indoor and fully covered outdoor areas
- Quick-connect wiring and quick-fix assembly
- Japanese motor bearings for smooth, long-life operation
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Fixed wiring must incorporate an all-pole disconnection switch, and the fan blades must be installed at least 2.1 metres above the floor.
Applications
- Bedrooms, living rooms and family rooms
- Covered patios, alfresco areas and other fully covered outdoor spaces
- Commercial and light commercial indoor applications
- Ventilation and air circulation in residential and commercial spaces
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of household and similar electric fans
- AS/NZS 3000 Wiring Rules for fixed electrical installation requirements
Environmental Benefits
- ECO speed setting can reduce fan operating power while maintaining useful air circulation
- Tri-colour LED panel provides efficient integrated lighting compared with traditional lamps
- Durable glass fibre composite blades and corrosion-resistant components can extend product service life and reduce replacement waste
- Electrical components should be disposed of through appropriate electrical recycling channels rather than general household waste
Warranty Information
Six-year warranty comprising two years in-home service and four years motor replacement for residential use. Commercial installations are covered for a maximum of one year, with in-home service excluded. LED panels, drivers, remotes and wall controllers have separate limited warranty periods.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
