Spinika 3 Speed RF Fan Remote Control Kit Ventair

BRAND: Ventair
SKU: SPNRFR
$81.10 List price: $108.10
+ −
30 Days Return Electricians Unlock Trade Access

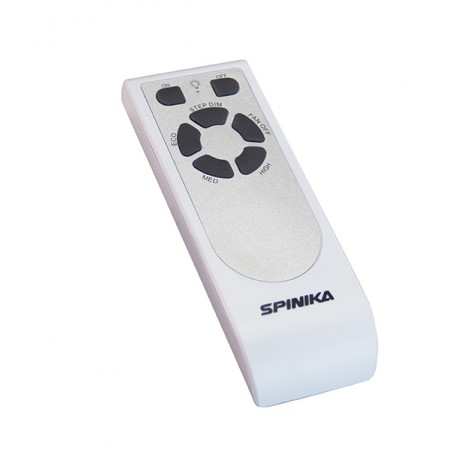

Spinika 3 Speed RF Remote Control Kit with Step Dimmable Function Suited to All Spinika Fans Includes Hand Piece & Receiver by Ventair

Alternatively Known As: Spinika RF Remote Control, Spinika Ceiling Fan Remote Kit, Ventair Fan Receiver and Remote

Technical Specifications
  • Model: SPNRFR
  • Input Rating: 240 V AC, 50 Hz
  • Rated Power: 100 W
  • Control Type: Radio frequency
  • Fan Speeds: Three
  • Light Control: Four-step dimming at 100%, 75%, 50% and 25% output
  • Batteries: 2 x AAA included
  • Connections: Quick-connect terminals
  • Compatibility: Ventair Spinika ceiling fans
  • Dimensions (H x L x W): 50mm x 150mm x 140mm
  • Weight: 0.3 kg
Key Features
  • Controls three fan speeds by radio frequency
  • Includes remote handpiece, cradle, receiver and batteries
  • Four-step dimmable light function for compatible Spinika fans
  • Quick-connect receiver wiring
  • Factory-paired remote and receiver
  • Suitable for long-range wireless operation
Professional Installation Requirements
  • Installation must be completed by a qualified and licensed electrician. The mains supply must be isolated before installation, and an all-pole disconnection switch must be incorporated into the fixed wiring in accordance with the installation instructions.
Applications
  • Retrofitting compatible Ventair Spinika ceiling fans with wireless control
  • Controlling Spinika fan speed from a handheld remote
  • Dimming and switching compatible Spinika fan lights
  • Residential indoor and covered outdoor ceiling fan installations
Standards & Compliance
  • AS/NZS 60335.2.80 for the safety of electric fans and separate controls supplied with fans
  • AS/NZS 3000 for fixed electrical installation and isolation requirements
Environmental Benefits
  • Four-step light dimming can reduce lighting energy consumption when full output is not required
  • Replaceable batteries and a serviceable receiver can extend the useful life of a compatible ceiling fan system
  • Enables efficient fan-speed selection, helping avoid unnecessary operation at higher speed settings
Warranty Information

One-year warranty against manufacturing defects, subject to Ventair warranty terms and correct installation by a licensed electrical contractor.

Available Now

Available through authorised Ventair distributors in Australia.
