SPL Conduit Coupler 25mm | IP66 to IP69 | Nickel-Plated Brass | High UV Resistance by Cabac

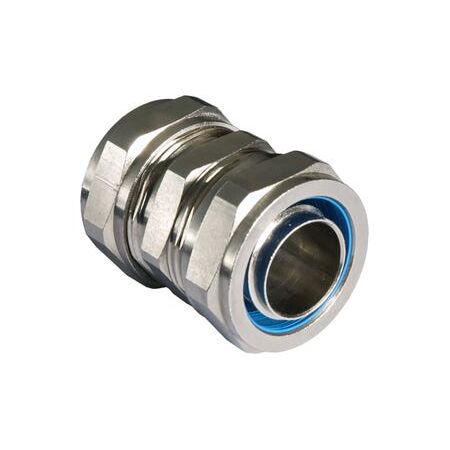

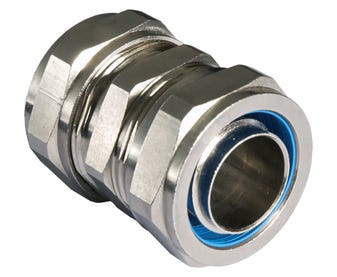

The Cabac FITTING SPL Conduit Coupler 25MM is a durable, nickel-plated brass straight fitting with fixed external male thread, offering high impact and UV resistance with IP66 to IP69 ingress protection ratings, ideal for demanding industrial and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING SPL CONDUIT COUPLER 25MM
Brand: Cabac
SKU: SPL25/U/M
Alternatively Known As: SPL Conduit Coupler 25mm, Nickel-Plated Brass Conduit Fitting, Liquid Tight Conduit Coupler, SPL Fitting 25mm
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread
- UV Resistance: Very high for outdoor applications
- Fire Safety: Self-extinguishing and halogen-free
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Professional installation recommended to ensure proper sealing and system integrity.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Halogen-free and self-extinguishing materials enhance fire safety and reduce toxic emissions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac FITTING SPL Conduit Coupler 25MM is available for immediate purchase, ideal for industrial, automation, utility, mining, and marine applications.
