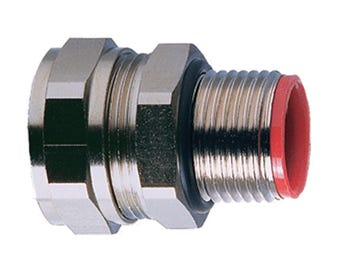

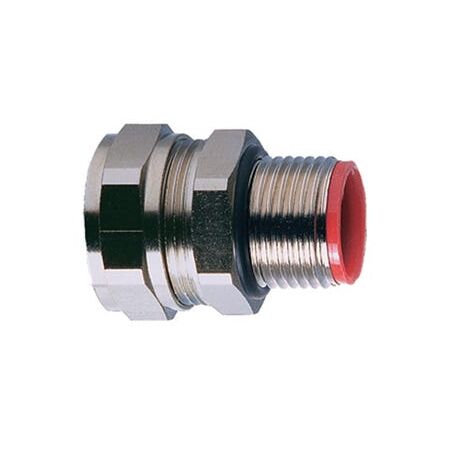

SPL Straight Fixed External Thread Fitting M63 | Nickel-Plated Brass | IP66/IP67/IP68 | High UV Resistance by Cabac
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M63 is a durable, nickel-plated brass fitting designed for high impact resistance and UV protection, suitable for various industrial and utility conduit applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING SPL STRAIGHT FIXED EXTERNAL THREAD M63
Brand: Cabac
SKU: SPL63/M63/M
Alternatively Known As: Adaptaflex SPL Straight Fitting, External Thread Conduit Fitting, Nickel Plated Brass Conduit Connector
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread
- UV Resistance: Very high for outdoor applications
- Standards Compliance: CE marking, BSI Kitemark KM35161, UL514B, AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Self-extinguishing and halogen-free materials enhance fire safety and reduce toxic emissions.
- Durable construction reduces replacement frequency and waste.
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M63 is available for immediate purchase, ideal for industrial, utility, and marine conduit applications.
