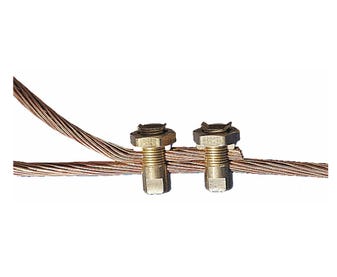

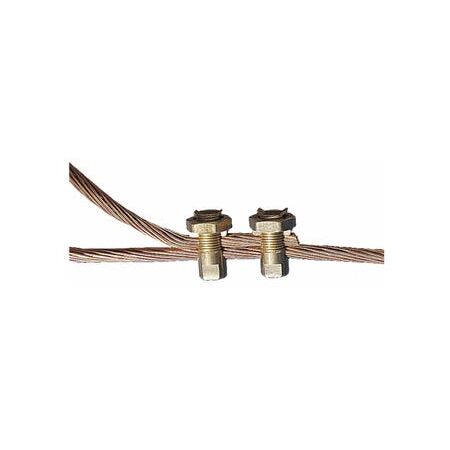

Split Bolt Connector 185mm2 | High Conductivity Brass | Captive Saddle | Natural Brass Finish by Cabac
Split bolt connector with high conductivity brass and captive saddle—ideal for joining aerial or insulated copper conductors. Built for secure connections in overhead line applications, with a durable natural brass finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Bolt Connector 185mm2
Brand: Cabac
SKU: SBC28
Alternatively Known As: Copper Split Bolt Connector, Brass Split Bolt Connector, Overhead Line Split Bolt, Copper Conductor Connector
Technical Specifications
- Conductive Material: Copper Alloy
- Operating Temperature: -55°C to 100°C
- Electroplating Material: 99.7% pure Tin
- Captive saddle design for distributed pressure
- Head dimensions compatible with standard linesman spanner
- Dimensions (H x L x W): 30mm x 185mm x 30mm
- Weight: 0.5 kg
Key Features
- Made from hard grade high conductivity brass
- Captive saddle applies distributed pressure to conductors
- Standard linesman spanner fits the head dimensions
- Supplied in natural brass or electro tinned finish
- Complies with ESAA specifications
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure compliance with electrical safety standards.
Applications
- Tapping or joining aerial hard drawn copper conductors
- Connecting insulated copper conductors in overhead line applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction ensures long service life reducing replacement waste
- Electro tinned option provides corrosion resistance extending product lifespan
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Split Bolt Connector 185mm2 is available for immediate purchase, ideal for electrical overhead line connectivity and copper conductor joining applications.
