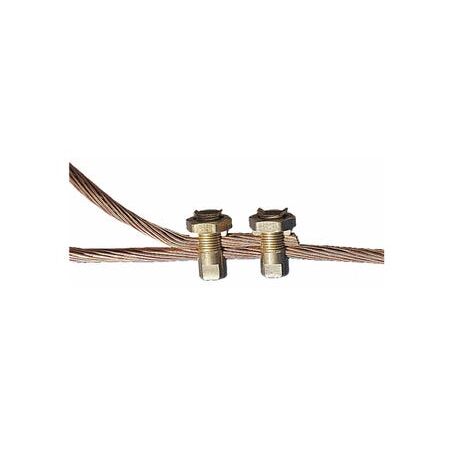

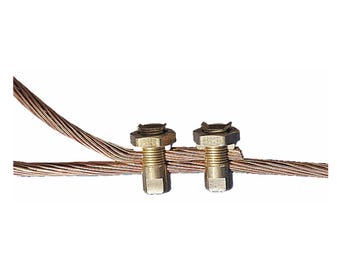

Split Bolt Connector 25mm Tinned | Copper Alloy | Captive Saddle Design | Electro Tinned by Cabac
The Cabac Split Bolt Connector 25mm Tinned is designed for tapping or joining aerial hard drawn or insulated copper conductors, made from high conductivity brass with a captive saddle for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Bolt Connector 25mm Tinned
Brand: Cabac
SKU: SBC12T
Alternatively Known As: Copper Split Bolt Connector, Tinned Copper Connector, Overhead Line Split Bolt
Technical Specifications
- Conductive Material: Copper Alloy
- Operating Temperature: -55°C to 100°C
- Electroplating Material: 99.7% pure Tin
- Captive saddle design for distributed pressure
- Standard linesman spanner compatible head dimensions
- Dimensions (H x L x W): 10mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Made from hard grade high conductivity brass
- Captive saddle applies distributed pressure to conductors
- Head dimensions fit standard linesman spanner
- Supplied electro tinned with 99.7% pure tin plating
- Complies with ESAA specifications
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure compliance with electrical safety standards.
Applications
- Tapping or joining aerial hard drawn copper conductors
- Connecting insulated copper conductors in overhead line systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Electro tinned coating enhances corrosion resistance, extending product life
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Split Bolt Connector 25mm Tinned is available for immediate purchase, ideal for electrical overhead line connectivity and power distribution applications.
