Split Bolt Connector 70mm2 | Copper Alloy | Tin Plated | High Conductivity by Cabac

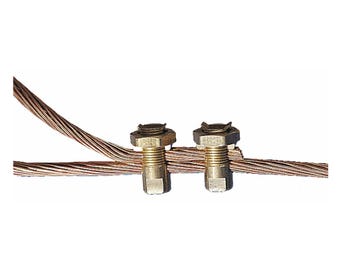

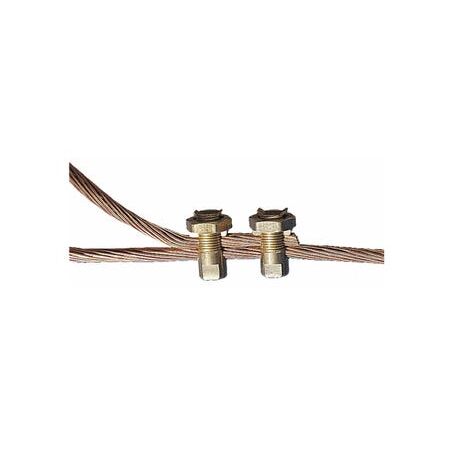

The Cabac Split Bolt Connector 70mm2 - Tin is designed for tapping or joining aerial hard drawn or insulated copper conductors, made from high conductivity brass with a tin electroplated finish for durability and conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Bolt Connector 70mm2 - Tin
Brand: Cabac
SKU: SBC25T
Alternatively Known As: Copper Split Bolt Connector, Tin Plated Split Bolt, Copper Conductor Connector
Technical Specifications
- Conductive Material: Copper Alloy
- Operating Temperature: -55°C to 100°C
- Electroplating Material: 99.7% pure Tin
- Complies with ESAA specifications for distributed pressure
- Dimensions (H x L x W): 20mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from hard grade high conductivity brass
- Captive saddle applies distributed pressure to conductors
- Standard linesman spanner fits the head
- Supplied electro tinned with 99.7% pure tin plating
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper conductor connection.
Applications
- Tapping or joining aerial hard drawn copper conductors
- Connecting insulated copper conductors in overhead line systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High conductivity reduces energy loss in electrical connections
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Split Bolt Connector 70mm2 - Tin is available for immediate purchase, ideal for electrical overhead line connectivity and power distribution applications.
