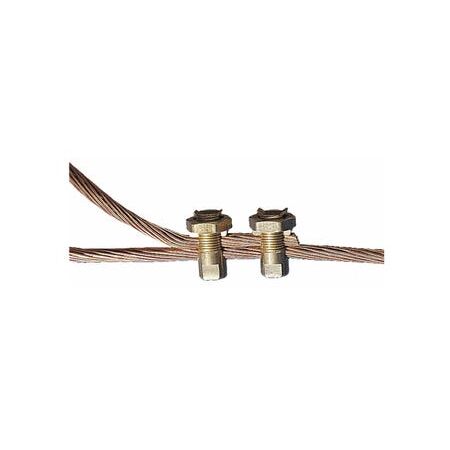

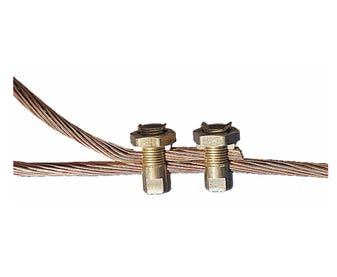

Split Bolt Connector 95mm2 | High Conductivity Brass | Captive Saddle | Electro-Tinned by Cabac
Split bolt connector with high conductivity brass and captive saddle—ideal for tapping or joining aerial copper conductors. Built for secure overhead line connections, with electro-tinned finish for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Bolt Connector 95mm2
Brand: Cabac
SKU: SBC26
Alternatively Known As: Copper Split Bolt Connector, Brass Split Bolt Connector, Overhead Line Connector, Copper Conductor Connector
Technical Specifications
- Conductive Material: Copper Alloy
- Operating Temperature: -55°C to 100°C
- Electroplating Material: 99.7% pure Tin
- Complies with ESAA specifications for distributed pressure
- Dimensions (H x L x W): 20mm x 95mm x 20mm
- Weight: 0.2 kg
Key Features
- Made from hard grade high conductivity brass
- Captive saddle applies distributed pressure to conductors
- Standard linesman spanner fits the head
- Supplied in natural brass or electro-tinned finish
Professional Installation Requirements
- Installation by a qualified electrician or linesman is recommended to ensure compliance with safety standards and proper conductor connection.
Applications
- Tapping or joining aerial hard drawn copper conductors
- Connecting insulated copper conductors in overhead power lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Electro-tinned option provides corrosion resistance extending product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Split Bolt Connector 95mm2 is available now for immediate purchase. Ideal for electrical overhead line connections and power distribution applications.
