Split Captive Plug Ring | 10A & 15A Compatible | Clear Polycarbonate by B&R Enclosures
Split captive plug ring with easy retrofit mechanism and clear polycarbonate design—ideal for secure power connections in data rooms and centres. Built for 10A and 15A single phase plugs, ensuring visibility and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

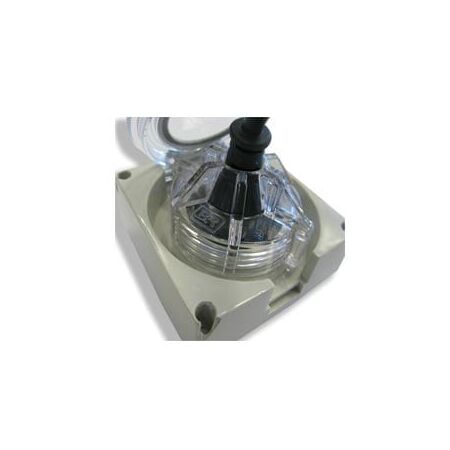

Product Name/Title: Ausrack Split Captive Plug Ring
Brand: B&R Enclosures
SKU: BRSPR1
Alternatively Known As: Captive Power Plug Ring, Split Captive Plug Ring, Secure Power Connector
Technical Specifications
- Material: Injection Molded Polycarbonate Plastic
- Finish: Transparent/Clear
- Suitable for: 10A and 15A connections
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Easy split mechanism to allow the retrofit of the plug ring without cutting the lead.
- Suits most 10A or 15A single phase moulded SAA plugs.
- Screws onto typical IP66 sockets similar to the 56 series.
- Clear design allows visibility of plug connection quality.
- Made from injection molded polycarbonate plastic.
Professional Installation Requirements
- Installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Data rooms and data centres requiring secure power connections.
- General use for 10A and 15A single phase moulded SAA plugs.
Standards & Compliance
- Complies with AS/NZS 3112 for plugs and socket-outlets.
Environmental Benefits
- Reduces waste by eliminating the need for rewiring and extending the life of existing cables.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Bren Closures Captive Plug Ring is available now for immediate purchase. Ideal for data centres and secure power applications.
