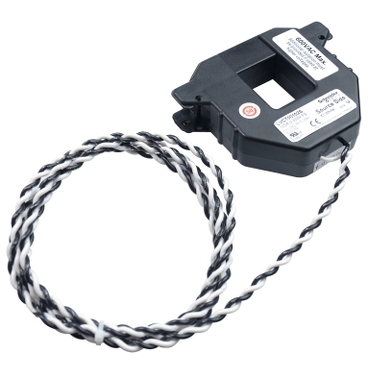

Split Core Current Transformer | 0.333V Output | 300A Rating | Easy Installation | @Pack of 1 | by Clipsal
The Split Core Current Transformer is designed for easy installation without disconnecting conductors, featuring a 0.333V output for safe integration with metering equipment. Ideal for energy monitoring and load analysis in commercial and industrial settings, this transformer supports accurate current measurement up to 300A AC, ensuring reliable performance for energy efficiency initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.333V Output | 300A Rating | Easy Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00302S
Alternatively Known As: Split Core CT, 0.333V Output Current Transformer, Clipsal LVCT, 300A Split Core CT, Energy Metering CT
Technical Specifications
- Current Rating: 300A AC
- Output Voltage: 0.333V (0.3V) at rated current
- Core Type: Split core for easy installation
- Window Size: 31mm x 100mm
- Frequency: 50/60Hz
- Accuracy: Class 1 or better
- Insulation: 600V rated
- Operating Temperature: -20°C to +55°C
- Dimensions (H x L x W): 120mm x 80mm x 40mm
- Weight: 0.7 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.333V (0.3V) low voltage output for safe integration with metering equipment
- Suitable for measuring up to 300A AC current
- Large window size (31mm x 100mm) accommodates a wide range of cable sizes
- High accuracy for reliable current measurement
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical panels
- Sub-metering for building management systems
- Load analysis and power quality monitoring
- Retrofitting existing electrical installations for current measurement
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Facilitates load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT00302S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring, sub-metering, and retrofit installations in commercial and industrial environments.
