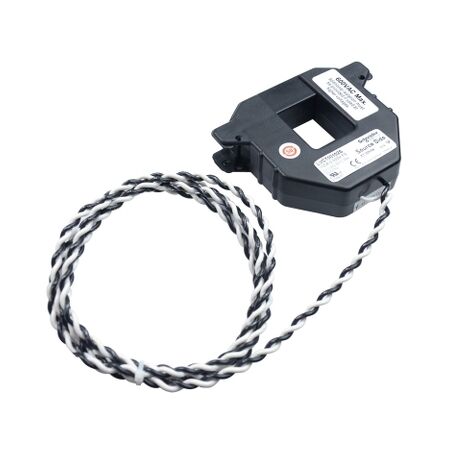

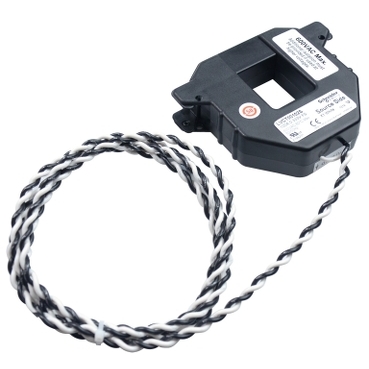

Split Core Current Transformer | 0.3V Output | Class 1 Accuracy | Clip-On Installation | @Pack of 1 | by Clipsal
The Split Core Current Transformer with a 0.3V output is designed for easy clip-on installation, making it perfect for energy monitoring in commercial and industrial settings. With Class 1 accuracy and a durable, double insulated housing, this transformer ensures reliable current measurement without the need to disconnect conductors. Ideal for retrofitting existing electrical panels and integrating with energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.3V Output | Class 1 Accuracy | Clip-On Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00202S
Alternatively Known As: Split Core CT, 0.3V Output Current Transformer, Clipsal CT Sensor, SCHLVCT00202S, Split Core Current Sensor
Technical Specifications
- Type: Split Core Current Transformer
- Output: 0.3V
- Installation: Clip-on/split core for non-intrusive installation
- Accuracy: Class 1
- Primary Current Range: 0-100A (typical for similar models)
- Frequency: 50/60Hz
- Insulation: Double insulated housing
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 60mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.3V output suitable for direct connection to compatible metering equipment
- Compact and lightweight construction
- High accuracy for reliable current measurement
- Durable housing for long-term performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Sub-metering for building management systems
- Retrofitting to existing electrical panels for load analysis
- Integration with energy management and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load analysis for optimized power usage and reduced waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT00202S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring and sub-metering in commercial and industrial electrical systems.
