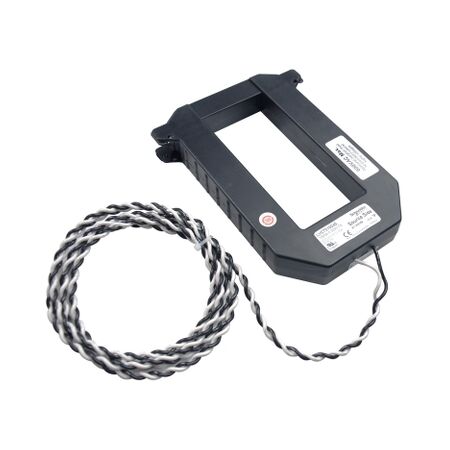

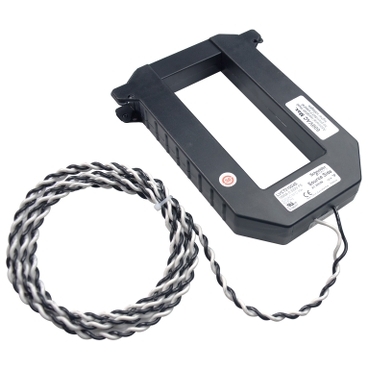

Split Core Current Transformer | 0.3V Output | High Accuracy | Compact Design | @Pack of 1 | by Clipsal
The Split Core Current Transformer with a 0.3V output is designed for easy installation without disconnecting conductors, making it ideal for energy monitoring in commercial and industrial settings. With high accuracy and a compact design, it seamlessly integrates with energy meters and automation systems, ensuring reliable performance for load analysis and sub-metering applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.3V Output | High Accuracy | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT02004S
Alternatively Known As: Split Core CT, 0.3V Output Current Transformer, Clipsal CT Sensor, Energy Metering CT, SCHLVCT02004S
Technical Specifications
- Type: Split Core Current Transformer
- Output: 0.3V
- Primary Current: 20A
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation: 600V
- Operating Temperature: -10°C to +50°C
- Case Material: Flame-retardant plastic
- Dimensions (H x L x W): 60mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.3V output suitable for direct connection to energy meters and monitoring devices
- Compact and lightweight construction
- High accuracy for reliable current measurement
- Ideal for retrofit and new installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Sub-metering for building management systems
- Retrofitting to existing electrical panels for load analysis
- Integration with energy management and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load analysis for optimized power usage and reduced waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT02004S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring and sub-metering in commercial and industrial electrical systems.
