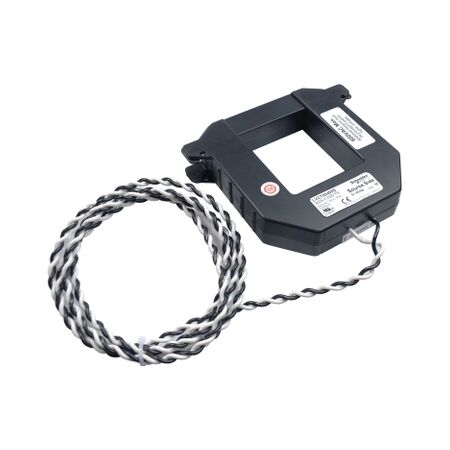

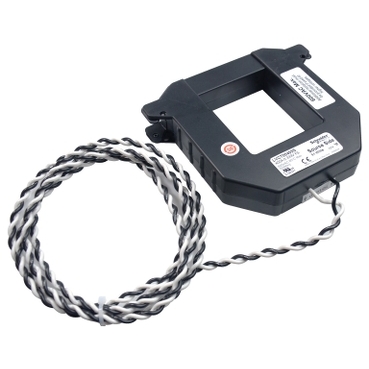

Split Core Current Transformer | 0.3V Output | High Accuracy | Easy Installation | @Pack of 1 | by Clipsal
The Split Core Current Transformer with a 0.3V output is designed for seamless energy monitoring in commercial and industrial settings. Its split core design allows for easy installation without disconnecting conductors, making it perfect for retrofitting existing electrical panels. With high accuracy and durable construction, this transformer is ideal for load analysis and integration with energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.3V Output | High Accuracy | Easy Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00803S
Alternatively Known As: Split Core CT, 0.3V Output Current Transformer, Clipsal CT Sensor, SCHLVCT00803S, Split Core Current Sensor
Technical Specifications
- Output Voltage: 0.3V
- Type: Split core current transformer
- Primary Current Range: Typically up to 100A (refer to datasheet for exact range)
- Accuracy Class: Class 1 (typical for energy monitoring CTs)
- Insulation: Moulded plastic housing
- Mounting: Clip-on/split core for retrofit applications
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 60mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.3V output suitable for direct connection to energy meters and monitoring equipment
- Compact and lightweight construction
- High accuracy for reliable current measurement
- Durable housing for long-term performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct placement and safe operation within electrical panels.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Sub-metering for building management systems
- Retrofitting to existing electrical panels for load analysis
- Integration with energy management and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load analysis for optimized power usage and reduced waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT00803S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring, sub-metering, and retrofit applications in commercial and industrial environments.
