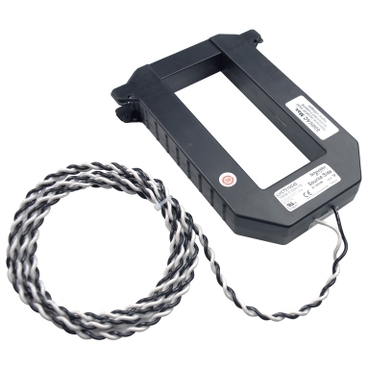

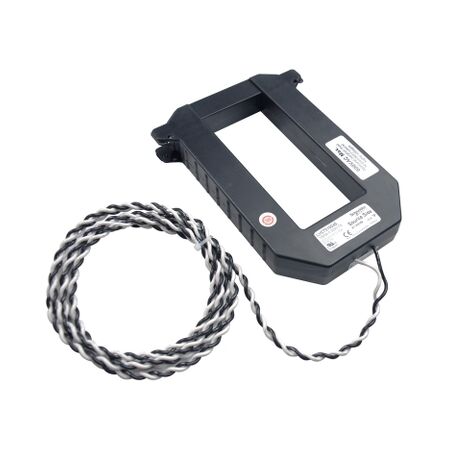

Split Core Current Transformer | 0.3V Output | 100A Primary Current | High Accuracy | @Pack of 1 | by Clipsal
The Split Core Current Transformer with a 0.3V output is designed for easy installation without disconnecting conductors, making it ideal for energy monitoring and sub-metering in commercial and industrial settings. With a primary current rating of 100A and high accuracy of 1%, this compact transformer is perfect for retrofit applications and integration into building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.3V Output | 100A Primary Current | High Accuracy | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT01004S
Alternatively Known As: Split Core CT, 0.3V Output Current Transformer, Clipsal CT Sensor, SCHLVCT01004S, Split Core Current Sensor
Technical Specifications
- Output Voltage: 0.3V
- Type: Split core current transformer
- Primary Current: 100A (typical, verify with datasheet)
- Accuracy Class: 1%
- Frequency Range: 50/60Hz
- Insulation: 600V
- Operating Temperature: -20°C to +60°C
- Mounting: Clip-on/split core
- Dimensions (H x L x W): 60mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.3V output suitable for direct connection to compatible metering equipment
- Compact and lightweight for versatile mounting
- High accuracy for reliable current measurement
- Ideal for retrofit and new installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Sub-metering for building management systems
- Retrofitting to existing electrical panels for load analysis
- Integration with energy management and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load analysis for optimized power usage and reduced waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHLVCT01004S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring, sub-metering, and integration into building management systems.
