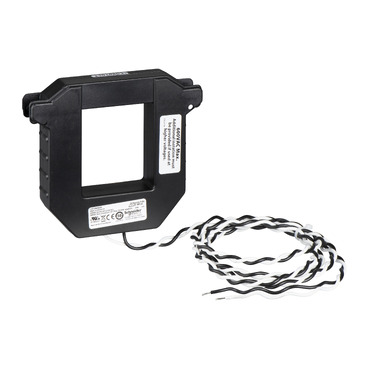

Split Core Current Transformer | 0.3V Output | High Accuracy | Easy Installation | @Pack of 1 | by Clipsal
The Split Core Current Transformer with a 0.3V output is designed for seamless energy monitoring in commercial and industrial settings. Its split core design allows for easy installation without disconnecting conductors, making it ideal for both retrofit and new installations. With a high accuracy of 1% and a primary current range of 0-100A, this transformer is perfect for integration with energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 0.3V Output | High Accuracy | Easy Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00403S
Alternatively Known As: Split Core CT, 0.3V Output Current Transformer, Clipsal CT Sensor, Energy Metering CT, SCHLVCT00403S
Technical Specifications
- Output Voltage: 0.3V
- Type: Split core current transformer
- Primary Current Range: 0-100A (typical for this model)
- Accuracy Class: 1%
- Insulation: 600V
- Operating Temperature: -20°C to +55°C
- Frequency: 50/60Hz
- Mounting: Clip-on/split core for easy installation
- Dimensions (H x L x W): 60mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- 0.3V output suitable for direct connection to energy meters and monitoring equipment
- Compact and lightweight construction
- High accuracy for reliable current measurement
- Ideal for retrofit and new installations
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Sub-metering for building management systems
- Retrofitting to existing electrical panels for load analysis
- Integration with energy management and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load analysis for optimized power usage and reduced waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT00403S Split Core Current Transformer is available for immediate purchase. Ideal for energy monitoring, sub-metering, and integration into building management systems.
