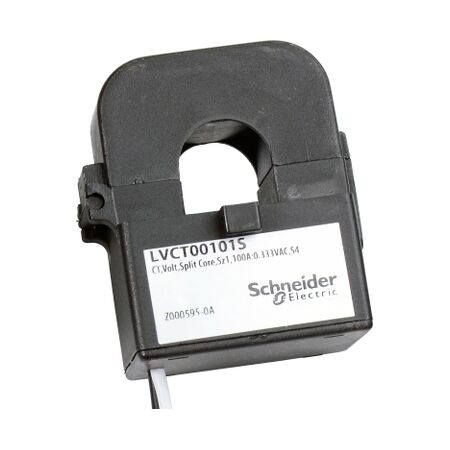

Split Core Current Transformer 100A | 0.333VAC Output | Easy Installation | by Clipsal
The Split Core Current Transformer 100A is designed for effortless installation without disconnecting conductors, making it ideal for energy monitoring and sub-metering applications. With a 0.333VAC output and compact design, it ensures safe low-voltage signal transmission, perfect for commercial and industrial electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer 100A | 0.333VAC Output | Easy Installation | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00101S
Alternatively Known As: Split Core CT, 100A Current Transformer, Clipsal CT 0.333V, LVCT 100A, SCHLVCT00101S, Low Voltage Current Transformer
Technical Specifications
- Current Rating: 100A AC
- Output Voltage: 0.333 VAC
- Core Type: Split core
- Window Size: Ø16mm x H20mm
- Frequency: 50/60Hz
- Insulation: UL recognized
- Accuracy: Class 1.0
- Operating Temperature: -20°C to +55°C
- Dimensions (H x L x W): 50mm x 30mm x 40mm
- Weight: 0.25 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- Measures up to 100A AC current
- Provides 0.333 VAC output for safe, low-voltage signal transmission
- Compact size with 16mm diameter and 20mm height window
- Ideal for low voltage current transformer applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical panels
- Sub-metering for building management systems
- Retrofitting existing electrical installations for current measurement
- Load analysis and power quality monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Facilitates load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Split Core Current Transformer 100A 0.333VAC (SCHLVCT00101S) is available for immediate purchase. Ideal for energy monitoring, sub-metering, and retrofit electrical installations.
