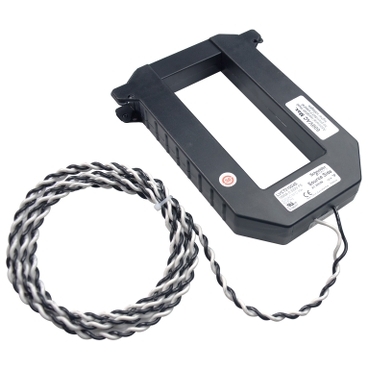

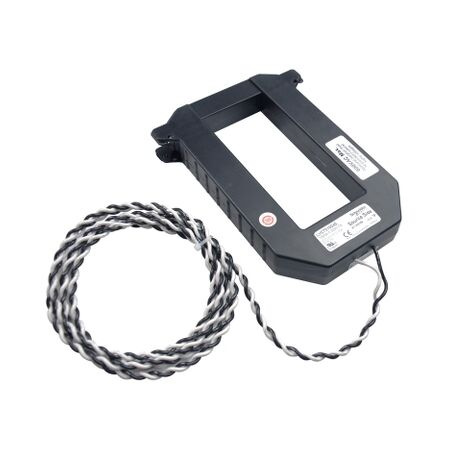

Split Core Current Transformer | 1200A Rating | 0.333V Output | High Accuracy | @Pack of 1 | by Clipsal
The Split Core Current Transformer is designed for easy installation and reliable current measurement, featuring a 1200A rating and a low voltage output of 0.333V AC. Ideal for energy monitoring in commercial and industrial settings, this transformer allows for seamless integration with energy management systems, ensuring accurate load analysis and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer | 1200A Rating | 0.333V Output | High Accuracy | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLVCT01204S
Alternatively Known As: Split Core CT, 0.333V Output Current Transformer, Clipsal 1200A CT, LV Split Core CT, Energy Metering CT
Technical Specifications
- Current Rating: 1200A
- Output Voltage: 0.333V AC
- Core Type: Split core
- Window Size: 62mm x 201mm
- Frequency: 50/60Hz
- Accuracy: Class 1
- Insulation: 600V
- Operating Temperature: -20°C to +55°C
- Dimensions (H x L x W): 201mm x 50mm x 62mm
- Weight: 2.5 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- High accuracy for reliable current measurement
- 0.333V low voltage output for safe integration with monitoring equipment
- Suitable for large conductors up to 62mm x 201mm
- Rated for 1200A current measurement
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Retrofitting existing electrical panels for current measurement
- Integration with energy management and building automation systems
- Sub-metering for load analysis and cost allocation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load management and reduction of unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLVCT01204S Split Core Current Transformer is available for immediate purchase. Ideal for commercial and industrial energy monitoring and sub-metering applications.
