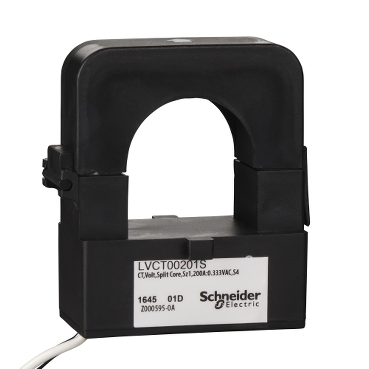

Split Core Current Transformer 200A | 0.333VAC Output | Compact Sz1 Design | by Clipsal
The Split Core Current Transformer 200A is designed for easy installation without disconnecting conductors, making it ideal for energy monitoring in commercial and industrial applications. With a 0.333VAC output for direct connection to metering equipment and high accuracy, this transformer supports efficient load analysis and sub-metering for building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer 200A | 0.333VAC Output | Compact Sz1 Design | by Clipsal
Brand: Clipsal
SKU: SCHLVCT00201S
Alternatively Known As: Split Core CT, 200A Current Transformer, Clipsal CT 0.333VAC, Energy Metering CT, SCHLVCT00201S
Technical Specifications
- Current Rating: 200A AC
- Output Voltage: 0.333VAC
- Core Type: Split core
- Form Factor: Sz1
- Accuracy: Class 1 or better
- Frequency: 50/60Hz
- Insulation: UL recognized materials
- Operating Temperature: -20°C to +55°C
- Dimensions (H x L x W): 80mm x 30mm x 60mm
- Weight: 0.4 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- Measures up to 200A AC current
- Output: 0.333VAC for direct connection to metering equipment
- Compact Sz1 form factor
- High accuracy for reliable energy monitoring
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical panels
- Sub-metering for building management systems
- Load analysis for HVAC, lighting, and machinery
- Retrofitting existing installations for current measurement
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load management and reduction of unnecessary power consumption
Warranty Information
1 year manufacturer's warranty against defects.
Available Now
The Clipsal Split Core Current Transformer 200A:0.333VAC Sz1 (SCHLVCT00201S) is available for immediate purchase. Ideal for energy monitoring and sub-metering in commercial and industrial applications.
