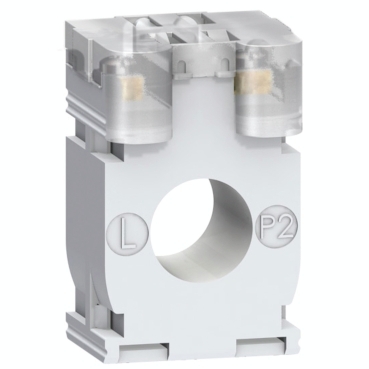

Split Core Current Transformer Type HA D18 | 150A Primary | 5A Secondary | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Split Core Current Transformer Type HA D18 is designed for seamless installation without disconnecting cables, featuring a primary current rating of 150A and a secondary output of 5A. Ideal for electrical panel monitoring and energy management systems, this tropicalised transformer ensures durability in harsh environments and is DIN rail mountable for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Core Current Transformer Type HA D18 | 150A Primary | 5A Secondary | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5HA015
Alternatively Known As: Split Core Current Transformer, Clipsal CT 150A/5A, DIN Mount Current Transformer, HA D18 Split Core CT, SCHMETSECT5HA015
Technical Specifications
- Primary Current: 150A
- Secondary Current: 5A
- Core Type: Split core
- Mounting: DIN rail
- Cable Diameter: Up to 21mm
- Tropicalised for harsh environments
- Output: 5A at rated primary current
- Dimensions (H x L x W): 80mm x 40mm x 60mm
- Weight: 0.6 kg
Key Features
- Split core design for easy installation without disconnecting cables
- Type HA, D18 for cable applications
- Rated for 150A primary, 5A secondary output
- Tropicalised for enhanced durability in harsh environments
- DIN rail mountable for secure and standard installation
- Suitable for cables up to 21mm diameter
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct operation and safety compliance.
Applications
- Electrical panel monitoring
- Energy management systems
- Industrial automation
- Building management systems
- Retrofitting existing installations for current measurement
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring for improved energy efficiency
- Supports retrofitting, reducing waste from system upgrades
- Tropicalised design extends product lifespan, minimizing replacements
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Split Core Current Transformer Type HA D18 150A/5A (SCHMETSECT5HA015) is available for immediate purchase. Ideal for electrical panel monitoring, energy management, and industrial automation applications.
