Split Nylon Snap Bush 16mm | Snap-in Fit & Cable Protection | Versatile Design | Black by Cabac
The Cabac Split Nylon Snap Bush 16mm is designed to protect cables from rough panel hole edges with a secure snap-in fit and smooth surface, suitable for retrofitting and various panel sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

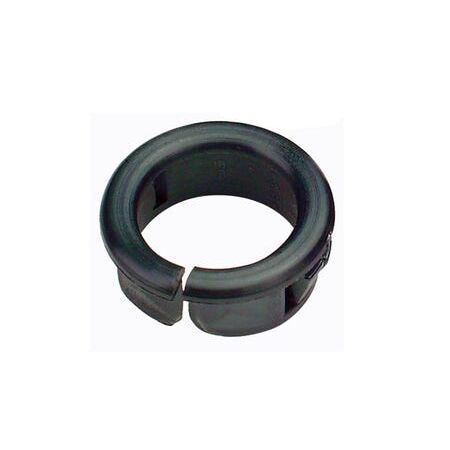

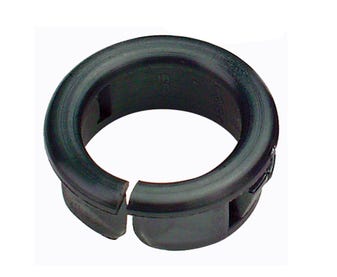

Product Name/Title: Split Nylon Snap Bush 16mm
Brand: Cabac
SKU: SNSB16
Alternatively Known As: Split Nylon Cable Grommet, Snap-in Cable Bush, Nylon Cable Protector, Split Snap Bushing
Technical Specifications
- Material: Nylon 66 UL, 94 V-2
- Colour: Black
- Chassis Thickness Compatibility: 0.8-3.2mm
- Hole Size (A): 15.9mm
- Inner Diameter (B): 11.5mm
- Outer Diameter (C): 17.7mm
- Height (L): 10.3mm
- Dimensions (H x L x W): 10.3mm x 17.7mm x 17.7mm
- Weight: 0.01 kg
Key Features
- Self-contained teeth that snap in place for a secure fit
- Creates a smooth surface to prevent cable cuts or chafing
- Split design allows fitting to a range of panel hole sizes
- Can be retrofitted to cords or wires already in place
Professional Installation Requirements
- Installation is straightforward and can be performed by qualified electricians or trained personnel to ensure secure fitting and cable protection.
Applications
- Protecting cables from rough, raw edges on panel holes
- Cable management in electrical panels and enclosures
- Retrofitting to existing cords or wires for added protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nylon material reduces the need for frequent replacements
- Protects cables, reducing waste from damaged wiring
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Split Nylon Snap Bush 16mm is available for immediate purchase, ideal for cable protection in electrical panels and wire management applications.
