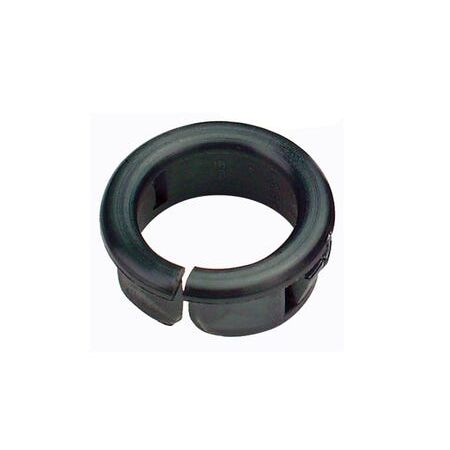

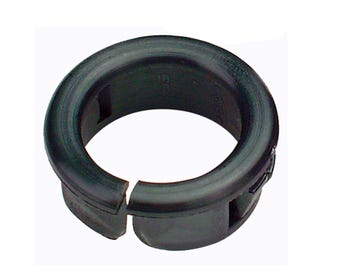

Split Nylon Snap Bush 19mm | Secure Snap-In Fit | Smooth Surface | Retro-Fit Design by Cabac
The Cabac Split Nylon Snap Bush 19mm is designed to protect cables from rough panel hole edges with a secure snap-in fit and smooth surface to prevent cable damage. Its split design allows easy fitting and retrofitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Split Nylon Snap Bush 19mm
Brand: Cabac
SKU: SNSB19
Alternatively Known As: Split Nylon Cable Grommet, Snap-in Cable Bushing, Nylon Split Bushing, Cable Edge Protector
Technical Specifications
- Material: Nylon 66 UL, 94 V-2
- Colour: Black
- Chassis Thickness: 0.8-3.2mm
- Hole Size (A): 19.0mm
- Inner Diameter (B): 13.1mm
- Outer Diameter (C): 20.2mm
- Height (L): 10.3mm
- Dimensions (H x L x W): 10.3mm x 20.2mm x 20.2mm
- Weight: 0.01 kg
Key Features
- Self-contained teeth that snap in place for a secure fit
- Creates a smooth surface to prevent cable cuts or chafing
- Split design allows fitting to a range of panel hole sizes
- Can be retrofitted to existing cords or wires
Professional Installation Requirements
- Installation can be performed by qualified personnel familiar with cable management and electrical safety standards.
Applications
- Protecting cables from rough, raw edges on panel holes
- Suitable for retrofitting to cords or wires already in place
- Used in cable and wire management for strain relief and grommet applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nylon material reduces the need for frequent replacements
- Protects cables, reducing waste from damaged wiring
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Cabac Split Nylon Snap Bush 19mm is available for immediate purchase, ideal for cable protection and wire management applications.
