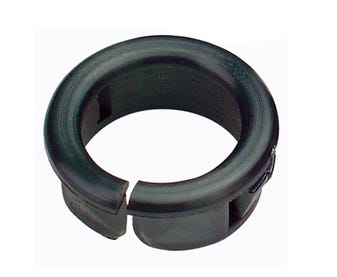

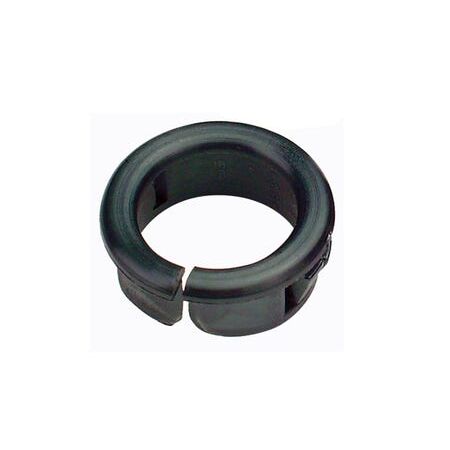

Split Nylon Snap Bush 22mm | Flame Retardant | Snap-In Design | Black by Cabac

BRAND: CABAC
SKU: SNSB22
$17.10 List price: $20.70
+ −
30 Days Return Delivery Options
The Cabac Split Nylon Snap Bush 22mm is designed to protect cables from rough panel hole edges with a secure snap-in fit and a smooth surface to prevent cable damage. Its split design allows easy fitting and retrofitting.

Product Name/Title: Split Nylon Snap Bush 22mm

Brand: Cabac

SKU: SNSB22

Alternatively Known As: Split Nylon Cable Grommet, Snap-in Cable Bushing, Nylon Panel Hole Protector, Cable Edge Protector

Technical Specifications
  • Material: Nylon 66 UL, 94 V-2 flame retardant
  • Chassis Thickness Compatibility: 0.8-3.2mm
  • Hole Size (A): 22.0mm
  • Inner Diameter (B): 17.0mm
  • Outer Diameter (C): 23.4mm
  • Height (L): 10.3mm
  • Colour: Black
  • Dimensions (H x L x W): 10.3mm x 23.4mm x 23.4mm
  • Weight: 0.01 kg
Key Features
  • Self-contained teeth that snap in place for a secure fit
  • Creates a smooth surface to prevent cable cuts or chafing
  • Split design fits a range of panel hole sizes, reducing precision requirements
  • Can be retrofitted to existing cords or wires
Professional Installation Requirements
  • Installation is straightforward and can be performed by qualified electricians or trained personnel to ensure secure fitting and cable protection.
Applications
  • Protecting cables from rough, raw edges on panel holes
  • Suitable for retrofitting to cords or wires already in place
  • Used in electrical panels and cable management systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable nylon material reduces the need for frequent replacements
  • Protects cables, reducing electronic waste from damaged wiring
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.

Available Now

The Cabac Split Nylon Snap Bush 22mm is available for immediate purchase, ideal for cable management and protection in electrical installations.
