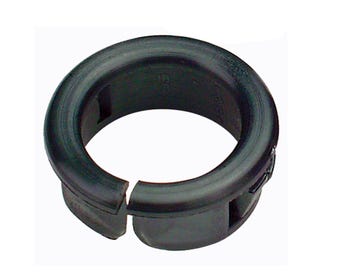

Split Nylon Snap Bush 25mm | Secure Snap-In Fit | Smooth Surface | Black by Cabac

BRAND: CABAC
SKU: SNSB25
$17.10 List price: $20.70
+ −
30 Days Return Delivery Options
The Cabac Split Nylon Snap Bush 25mm is designed to protect cables from rough panel hole edges with a secure snap-in fit and smooth surface to prevent cable damage. Its split design allows easy fitting and retrofitting.

Product Name/Title: Split Nylon Snap Bush 25mm

Brand: Cabac

SKU: SNSB25

Alternatively Known As: Split Nylon Cable Grommet, Snap-in Cable Bushing, Nylon Split Bushing, Cable Hole Protector

Technical Specifications
  • Material: Nylon 66 UL, 94 V-2
  • Chassis Thickness Compatibility: 0.8-3.2mm
  • Hole Size (A): 25.1mm
  • Inner Diameter (B): 20.2mm
  • Outer Diameter (C): 27.0mm
  • Height (L): 10.3mm
  • Colour: Black
  • Dimensions (H x L x W): 10.3mm x 27mm x 27mm
  • Weight: 0.01 kg
Key Features
  • Self-contained teeth that snap in place to provide a secure fit
  • Creates a smooth surface to prevent cable cuts or chafing
  • Split design allows fitting to a range of panel hole sizes
  • Can be retrofitted to existing cords or wires
Professional Installation Requirements
  • Installation is straightforward and can be performed by qualified electricians or trained personnel to ensure secure fitting and cable protection.
Applications
  • Protecting cables from rough, raw edges on panel holes
  • Suitable for retrofitting to cords or wires already in place
  • Used in cable and wire management for strain relief and grommet applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable nylon material reduces need for frequent replacements
  • Protects cables, reducing waste from damaged wiring
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Split Nylon Snap Bush 25mm is available for immediate purchase, ideal for cable protection in electrical installations and panel wiring applications.
