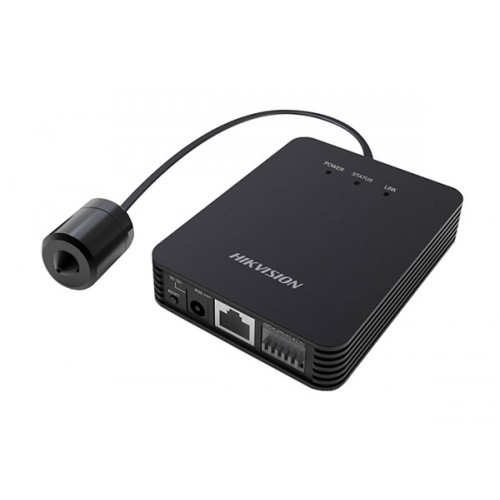

Split Pinhole Camera 3.7mm with 2m Cable Hikvision
Hikvision split pinhole camera features a 3.7mm lens and 2m cable. Ideal for special-purpose CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2MP Covert Network Camera, Hikvision Pinhole CCTV Camera, Hikvision DS-2CD6425G1-10(3.7mm)2m
Technical Specifications
- Model: DS-2CD6425G1-10(3.7mm)2m
- Camera Type: Indoor covert network camera
- Image Sensor: 1/2.8-inch progressive-scan CMOS
- Maximum Resolution: 1920 x 1080 at up to 25fps
- Lens: Fixed 3.7mm pinhole lens, F2.5
- Field of View: 75.5° horizontal, 41.6° vertical, 87.3° diagonal
- Video Compression: H.265, H.264 and MJPEG sub-stream
- Wide Dynamic Range: 120dB WDR
- Minimum Illumination: 0.002 lux at F1.2 with AGC on
- Power Supply: 12VDC ±20% or PoE IEEE 802.3af
- Maximum Power Consumption: 6W
- Cable Length: 2m lens cable
- Operating Temperature: -30°C to 60°C
- Operating Humidity: 95% or less, non-condensing
- Lens Head Dimensions: Ø26mm x 40mm
- EMC Approval: RCM, AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 26mm x 77.5mm x 69mm
- Weight: 0.451 kg
Key Features
- Split-camera design with separate pinhole lens and main camera body
- Fixed 3.7mm lens for discreet surveillance applications
- 2MP Full HD image resolution
- 120dB wide dynamic range for scenes with contrasting light levels
- Supports H.265 compression for reduced bandwidth and storage requirements
- Power over Ethernet or 12VDC operation
- Supports ONVIF interoperability
- Suitable for indoor covert CCTV installations
- 2m lens cable supplied
Professional Installation Requirements
- Installation should be carried out by a suitably qualified security or structured-cabling technician. Configure and install the camera in accordance with applicable local licensing requirements, manufacturer instructions and relevant CCTV installation guidance.
Applications
- Covert CCTV surveillance
- Retail loss prevention and security monitoring
- ATM, kiosk and point-of-sale monitoring
- Reception, interview-room and access-control surveillance
- Special-purpose indoor security installations
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC compliance with RCM approval listed by the manufacturer
- AS/NZS 62676.1.1:2020 and AS/NZS 62676.4:2020 are relevant to CCTV system requirements and application guidance; system-level compliance depends on the complete installation
Environmental Benefits
- H.265 video compression can reduce network bandwidth and recording-storage requirements compared with older codecs
- PoE operation can simplify cabling and reduce the need for separate power infrastructure
- RoHS and WEEE environmental compliance is listed in the manufacturer datasheet
- Durable network-camera construction can reduce replacement frequency and electronic waste
Warranty Information
Typically supplied with a 3-year Australian manufacturer warranty for Hikvision cameras when purchased through an authorised Australian distributor; confirm terms with the supplying distributor. ([arcip.com.au](https://arcip.com.au/warranty-support?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to local model and stock availability.
