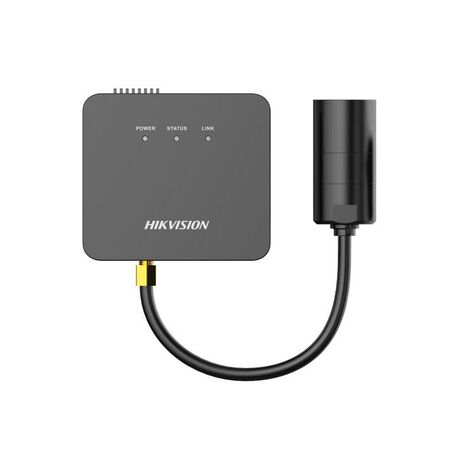

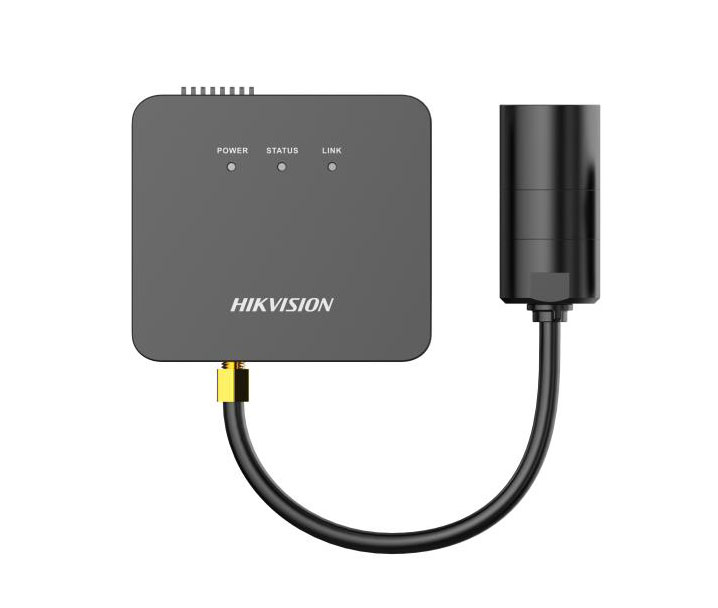

Split Tube Camera 2.8mm with 2m Cable Hikvision
Hikvision split tube camera features a 2.8mm lens and 2m cable. Ideal for special-purpose CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Split Tube Camera, Hikvision Covert IP Camera, Hikvision Modular Pinhole Camera, DS-2CD6425G1-30
Technical Specifications
- Resolution: 2MP, up to 1920 × 1080
- Image Sensor: 1/2.8-inch Progressive Scan CMOS
- Lens: Fixed 2.8mm tube lens
- Lens Aperture: F2.0
- Horizontal Field of View: 109°
- Video Compression: H.265+, H.265, H.264+ and H.264
- Wide Dynamic Range: 120dB True WDR
- Minimum Illumination: 0.002 Lux at F1.2, AGC on
- Cable Length: 2m
- Power Supply: 12V DC or IEEE 802.3af PoE
- Maximum Power Consumption: 3W
- Network Interface: 10/100M Ethernet
- Storage: MicroSD, microSDHC and microSDXC up to 256GB
- Audio: One audio input and one audio output
- Alarm Interface: One alarm input and one alarm output
- Operating Temperature: -30°C to 60°C
- Ingress Protection: Indoor use only
- Dimensions (H x L x W): 77.5mm x 69mm x 26mm
- Weight: 0.451 kg
Key Features
- Separated camera and main-body design for discreet CCTV installations
- Compact tube camera module connected by a 2m cable
- 2.8mm fixed lens for wide-area indoor monitoring
- Full HD 1920 × 1080 video recording
- 120dB True WDR for scenes with strong backlighting
- H.265+ compression helps reduce network bandwidth and storage requirements
- Supports PoE or 12V DC power
- MicroSD recording and ONVIF-compatible network integration
- Suitable for concealed or special-purpose CCTV applications
Professional Installation Requirements
- Installation should be carried out by a competent CCTV or security technician, with network configuration, PoE supply and concealed camera placement completed in accordance with local electrical and communications requirements.
Applications
- Special-purpose and discreet CCTV installations
- Retail loss prevention and point-of-sale monitoring
- Reception desks, counters and service areas
- Interview rooms and controlled-access areas
- Indoor monitoring where a conventional camera body is unsuitable
- Commercial, institutional and residential indoor surveillance
Standards & Compliance
- RCM approval referencing AS/NZS CISPR 32:2015 for electromagnetic compatibility
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements
- Low maximum power consumption of approximately 3W supports efficient continuous operation
- CE-RoHS and WEEE environmental compliance are identified in the manufacturer datasheet
- Modular construction can allow the visible camera module to be retained while the main body is positioned separately, potentially reducing replacement requirements
Warranty Information
Hikvision Australia warranty periods vary by product and supply agreement. Australian distributors commonly specify a 3-year back-to-base manufacturer warranty for Hikvision IP cameras; confirm coverage, model eligibility and authorised-channel purchase requirements before purchase.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
