Trade Discount 20%

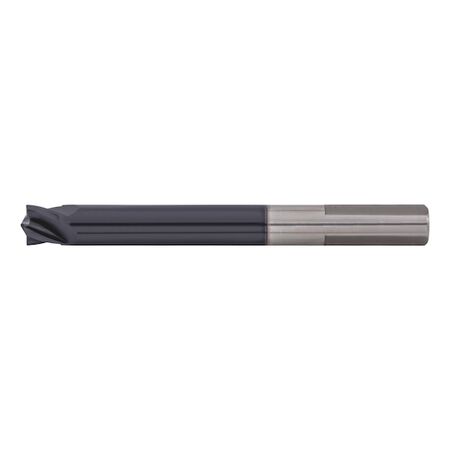

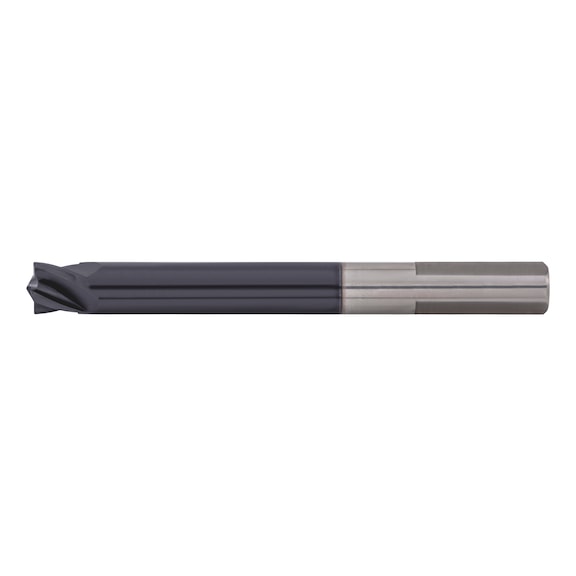

Spot Weld Cutter | Solid Carbide | MAGMA Coating | 9mm Diameter | by Wurth
The Spot Weld Cutter is designed for high-performance automotive applications, featuring a solid carbide construction and MAGMA multilayer coating for enhanced durability. With 4 cutting edges and a 9mm diameter, it excels in removing spot welds on body panels, making it ideal for professional technicians and machinists. This cutter lasts up to 9 times longer than standard options, ensuring efficiency and reliability in demanding work environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spot Weld Cutter | Solid Carbide | MAGMA Coating | 9mm Diameter | by Wurth
Brand: Wurth
SKU: 710789090
Alternatively Known As: Spot Weld Cutter, Spot Weld Drill Bit, Body Panel Spot Weld Remover, High-Performance Spot Weld Cutter
Technical Specifications
- Quality: ZEBRA-Premium
- Cutting material: Solid Carbide (SC)
- Surface: MAGMA multilayer coating
- Suitable for tensile strength up to: 1500 N/mm²
- Diameter: 9 mm
- Length: 84 mm
- Chip flute length: 37 mm
- Shank diameter: 9 mm
- Shank style: 3-face shank
- Type: DIN 1897 solid carbide multi-performance
- Service life rating: 4 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 4 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Dimensions (H x L x W): 9mm x 84mm x 9mm
- Weight: 0.1 kg
Key Features
- 4 cutting edges for demanding work
- High thermal and oxidation stability up to 800 °C
- Extremely robust and abrasion-resistant with hardness approximately 3,500 HV
- Lasts up to 9 times longer than standard spot weld cutters
- Lasts up to twice as long as traditional coatings like TiN
- MAGMA multilayer coating for enhanced durability
- 3-face shank design for faster and more comfortable use with hand-held drills
- No drill chuck rotation, optimal power transmission, and drill chuck protection
Professional Installation Requirements
- Professional use by trained technicians or machinists is recommended to ensure safety and optimal performance.
Applications
- Removing spot welds on body panels including high-strength components (BTR, BOR etc.)
- Used on vehicle parts such as A-pillar, B-pillar, car door sill protector
- Suitable for all types of vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Longer tool life reduces waste and frequency of replacements
- Efficient cutting reduces energy consumption during use
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth Universal High-Performance Spot Weld Cutter is available now for immediate purchase. Ideal for automotive body repair and machining applications.
