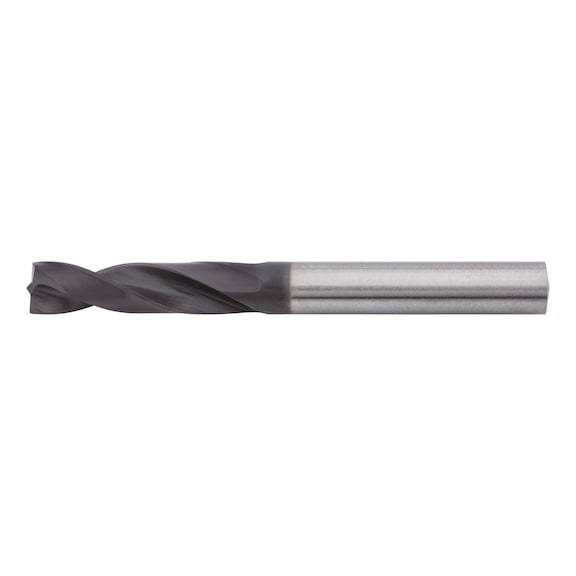

Spot Weld Drill Bit | Magma Coated | High Strength | 10mm Diameter | by Wurth
The Spot Weld Drill Bit is designed for high-strength automotive applications, featuring a special magma multi-layer coating that provides up to 9x longer service life compared to uncoated bits. With a diameter of 10mm and optimized tip geometry, it ensures excellent centering and precise drilling on spot welds, making it ideal for loosening spot welds on bodywork panels up to 1200 N/mm² strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spot Weld Drill Bit | Magma Coated | High Strength | 10mm Diameter | by Wurth
Brand: Wurth
SKU: 710740100
Alternatively Known As: Spot Weld Drill Bit, Magma Coated Drill Bit, High Strength Spot Weld Drill, Automotive Spot Weld Drill
Technical Specifications
- Quality: Wurth-Standard
- Cutting material: HSCo
- Surface: Magma multilayer coating
- Suitable for tensile strength up to: 1200 N/mm²
- Diameter: 10 mm
- Length: 89 mm
- Chip flute length: 43 mm
- Shank diameter: 10 mm
- Shank style: Cylindrical
- Type: DIN 1897 Longlife
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 3 of 4 points
- Bore hole quality (points system): 4 of 4 points
- Versatility (points system): 3 of 4 points
- Drilling behaviour (points system): 3 of 4 points
- Dimensions (H x L x W): 10mm x 89mm x 10mm
- Weight: 0.1 kg
Key Features
- Special magma multi-layer coating providing up to 9x longer service life compared to uncoated bits
- Up to 2x longer service life compared to conventional coatings (heat-resistant up to 800 °C)
- Up to 50% faster cutting speed compared to uncoated spot-weld drill bits
- Extra-stable tip geometry for difficult drilling conditions
- Optimised tip geometry for longer service life
- Excellent centring and precise drilling on spot welds
- Burr-free drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use with hand-held drills only; not suitable for pneumatic machines or drills with impact chucks or spindles. Professional handling recommended for optimal performance and safety.
Applications
- Loosening spot welds on high-strength bodywork panels up to 1200 N/mm² strength
- Suitable for use on all kinds of vehicles
- Use with hand-held drills (not suitable for pneumatic machines or impact chucks)
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Wurth standard quality assurance applies.
Available Now
The Wurth 710740100 Spot Weld Drill Bit is available now for immediate purchase. Ideal for automotive bodywork repair and vehicle maintenance applications.
