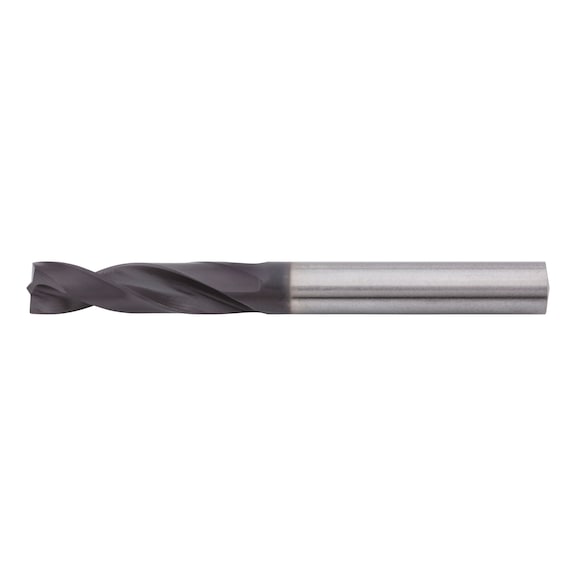

Spot Weld Drill Bit | Magma Coated | High Strength | 6mm Diameter | by Wurth
The Spot Weld Drill Bit features a special magma multi-layer coating that provides up to 9x longer service life compared to uncoated bits, making it ideal for loosening spot welds on high-strength bodywork panels. Designed for use with hand-held drills, this bit excels in automotive and bodywork repair applications, ensuring burr-free drilling and excellent centering on spot welds.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spot Weld Drill Bit | Magma Coated | High Strength | 6mm Diameter | by Wurth
Brand: Wurth
SKU: 710740060
Alternatively Known As: Spot Weld Drill Bit, Magma Coated Spot Weld Drill, High Strength Spot Weld Drill, Automotive Spot Weld Drill Bit
Technical Specifications
- Quality: Wurth-Standard
- Cutting material: HSCo
- Surface: Magma multilayer coating
- Suitable for tensile strength up to: 1200 N/mm²
- Diameter: 6 mm
- Length: 66 mm
- Chip flute length: 28 mm
- Shank diameter: 6 mm
- Shank style: Cylindrical
- Type: DIN 1897 Longlife
- Service life rating: 3 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 3 of 4 points
- Dimensions (H x L x W): 6mm x 66mm x 6mm
- Weight: 0.1 kg
Key Features
- Special magma multi-layer coating providing up to 9x longer service life compared to uncoated bits
- Up to 2x longer service life compared to conventional coatings, heat-resistant up to 800°C
- Up to 50% faster cutting speed compared to uncoated spot-weld drill bits
- Extra-stable tip geometry for difficult drilling conditions with common hand drills
- Optimised tip geometry for longer service life
- Excellent centring on spot welds for precise drilling
- Burr-free drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use with hand-held drills only; not suitable for pneumatic machines or drills with impact chucks or spindles. Professional handling recommended for optimal performance and safety.
Applications
- Loosening spot welds on high-strength bodywork panels up to 1200 N/mm² strength
- Suitable for use on all kinds of vehicles
- Hand-held drill applications for automotive and bodywork repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Wurth standard quality assurance applies; warranty against manufacturing defects as per Wurth policy.
Available Now
The Wurth 710740060 Magma Multi-Layer Coated Spot Weld Drill Bit is available now for immediate purchase. Ideal for automotive bodywork repair and high-strength panel drilling applications.
