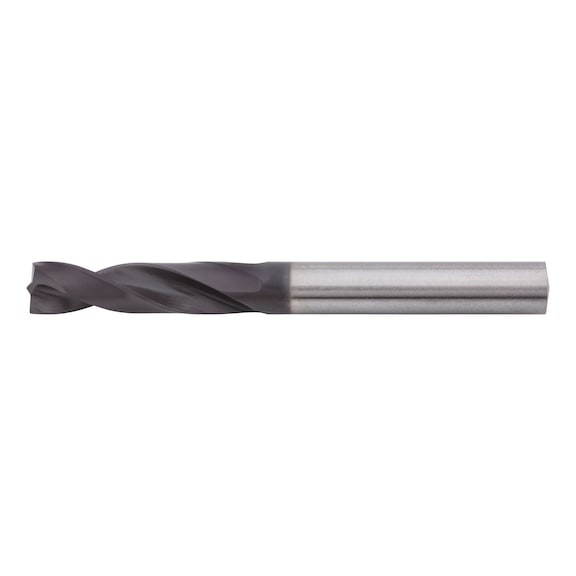

Spot Weld Drill Bit | Magma Coated | High Strength | 9mm Diameter | by Wurth
The Spot Weld Drill Bit features a special magma multi-layer coating that provides up to 9x longer service life compared to uncoated bits, making it ideal for loosening spot welds on high-strength bodywork panels. Designed for use with common hand-held drills, this bit offers excellent centering and precise drilling, ensuring burr-free results. Perfect for automotive repair and maintenance, it withstands tensile strength up to 1200 N/mm².
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spot Weld Drill Bit | Magma Coated | High Strength | 9mm Diameter | by Wurth
Brand: Wurth
SKU: 710740090
Alternatively Known As: Spot Weld Drill Bit, Magma Coated Drill Bit, High Strength Spot Weld Drill, Automotive Spot Weld Drill
Technical Specifications
- Quality: Wurth-Standard
- Cutting material: HSCo
- Surface: Magma multilayer coating
- Suitable for tensile strength up to: 1200 N/mm²
- Diameter: 9 mm
- Length: 84 mm
- Chip flute length: 47 mm
- Shank diameter: 9 mm
- Shank style: Cylindrical
- Type: DIN 1897 Longlife
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 3 of 4 points
- Bore hole quality (points system): 4 of 4 points
- Versatility (points system): 3 of 4 points
- Drilling behaviour (points system): 3 of 4 points
- Dimensions (H x L x W): 9mm x 84mm x 9mm
- Weight: 0.1 kg
Key Features
- Special magma multi-layer coating providing up to 9x longer service life compared to uncoated bits
- Up to 2x longer service life compared to conventional coatings, heat-resistant up to 800 °C
- Up to 50% faster cutting speed compared to uncoated spot-weld drill bits
- Extra-stable tip geometry for difficult drilling conditions with common hand drills
- Optimised tip geometry for longer service life
- Excellent centring and precise drilling on spot welds
- Burr-free drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with common hand-held drills. Not suitable for pneumatic machines or drills with impact chucks.
Applications
- Loosening spot welds on high-strength bodywork panels up to 1200 N/mm² strength
- Suitable for use on all kinds of vehicles with hand-held drills
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable
Warranty Information
Wurth standard quality assurance applies.
Available Now
The Wurth 710740090 Magma Multi-Layer Coated Spot Weld Drill Bit is available now for immediate purchase. Ideal for automotive bodywork repair and maintenance.
