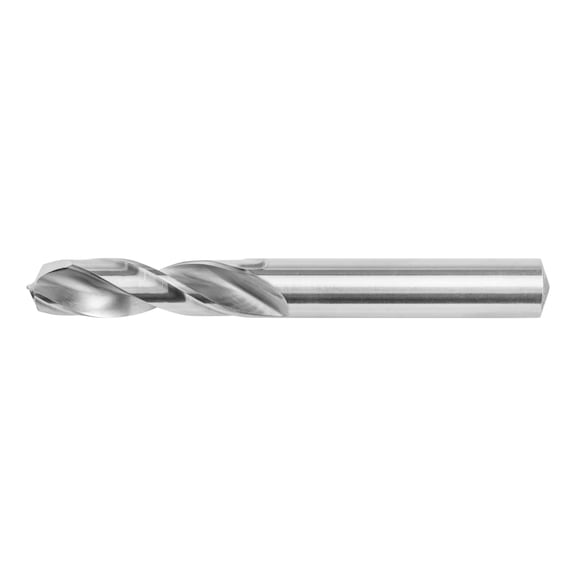

Spot Weld Drill Bit | Step Drill Tip for Precise Depth | HSCo Material | by Wurth
The Spot Weld Drill Bit is designed for automotive bodywork, featuring a step on the drill tip for precise drilling depth and optimized tip geometry for longer service life. Ideal for safely loosening spot welds on all vehicle types, this drill bit eliminates the need for center-punching, making it a must-have for professional workshops.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spot Weld Drill Bit | Step Drill Tip for Precise Depth | HSCo Material | by Wurth
Brand: Wurth
SKU: 7100010
Alternatively Known As: Spot Weld Drill Bit, Step Drill Bit for Spot Welds, Vehicle Bodywork Spot Weld Drill
Technical Specifications
- Quality: Wurth-Standard
- Cutting material: HSCo
- Surface: Plain
- Suitable for tensile strength up to: 850 N/mm²
- Diameter of stop: 10 mm
- Length: 88 mm
- Shank diameter: 10 mm
- Shank style: Cylindrical
- Type: Specialist with step on the drill tip
- Service life (points system): 2 of 4 points
- Drilling speed (point system): 2 of 4 points
- Bore hole quality (point system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Drilling behaviour (point system): 3 of 4 points
- Dimensions (H x L x W): 10mm x 88mm x 10mm
- Weight: 0.1 kg
Key Features
- Step on the drill tip acts as a drill stop indicating precise drilling depth
- Faster spot-drilling due to thinned transverse cutting edge
- No centre-punching necessary
- Optimised tip geometry for longer service life compared to conventional spot-weld drill bits
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use with hand-held drills only; not suitable for pneumatic machines or drills with impact chucks or spindles. Professional handling recommended for safety and optimal performance.
Applications
- Safe loosening of spot welds on conventional bodywork panels
- Suitable for all types of vehicles
- Vehicle bodywork repairs requiring precise spot weld drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Packaging is fully recyclable, reducing environmental impact
Warranty Information
Wurth standard quality assurance applies.
Available Now
The Wurth Specialist Spot Weld Drill Bit with step on the drill tip is available now for immediate purchase. Ideal for automotive bodywork repair professionals and workshops.
