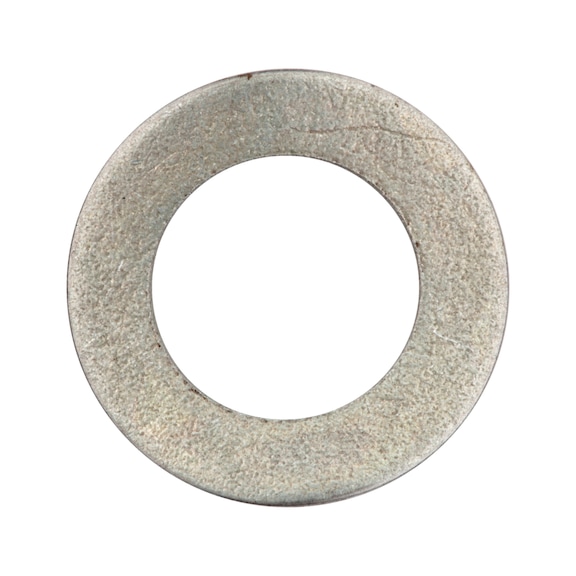

Spring Lock Washer Shape B DIN 137 | Zinc Plated | Corrugated Design | M6 Compatible | @Pack of 50 | by Wurth
Spring lock washer Shape B DIN 137 is designed for M6 screw threads, featuring a corrugated design for enhanced locking capability. Ideal for mechanical fastening applications in automotive and industrial settings, this zinc-plated washer ensures corrosion resistance and durability, making it perfect for secure assembly in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Lock Washer Shape B DIN 137 | Zinc Plated | Corrugated Design | M6 Compatible | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4356
Alternatively Known As: Spring lock washer, DIN 137 washer, corrugated lock washer, zinc plated lock washer, M6 lock washer
Technical Specifications
- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 12 mm
- Height (h1): 2.6 mm
- Thickness (s1): 0.5 mm
- Material: Spring steel
- Surface: Zinc plated
- Design: Corrugated
- Standard: DIN 137 Shape B
- Dimensions (H x L x W): 2.6mm x 12mm x 12mm
- Weight: 0.01 kg
Key Features
- Spring-loaded locking element operating via an axial spring system
- Corrugated design for enhanced locking capability
- Mechanically applied zinc coating for corrosion resistance
- Complies with DIN 137 Shape B standard
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and locking.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Automotive, machinery, and equipment assembly
- General industrial and construction use
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
