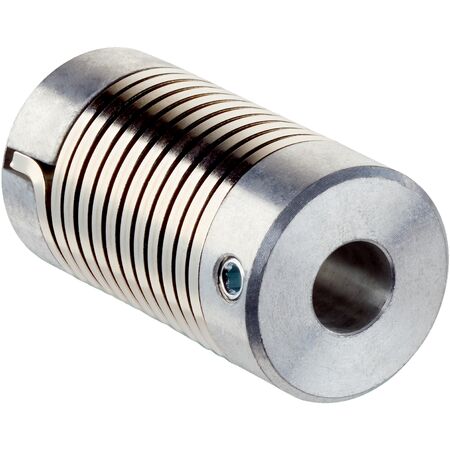

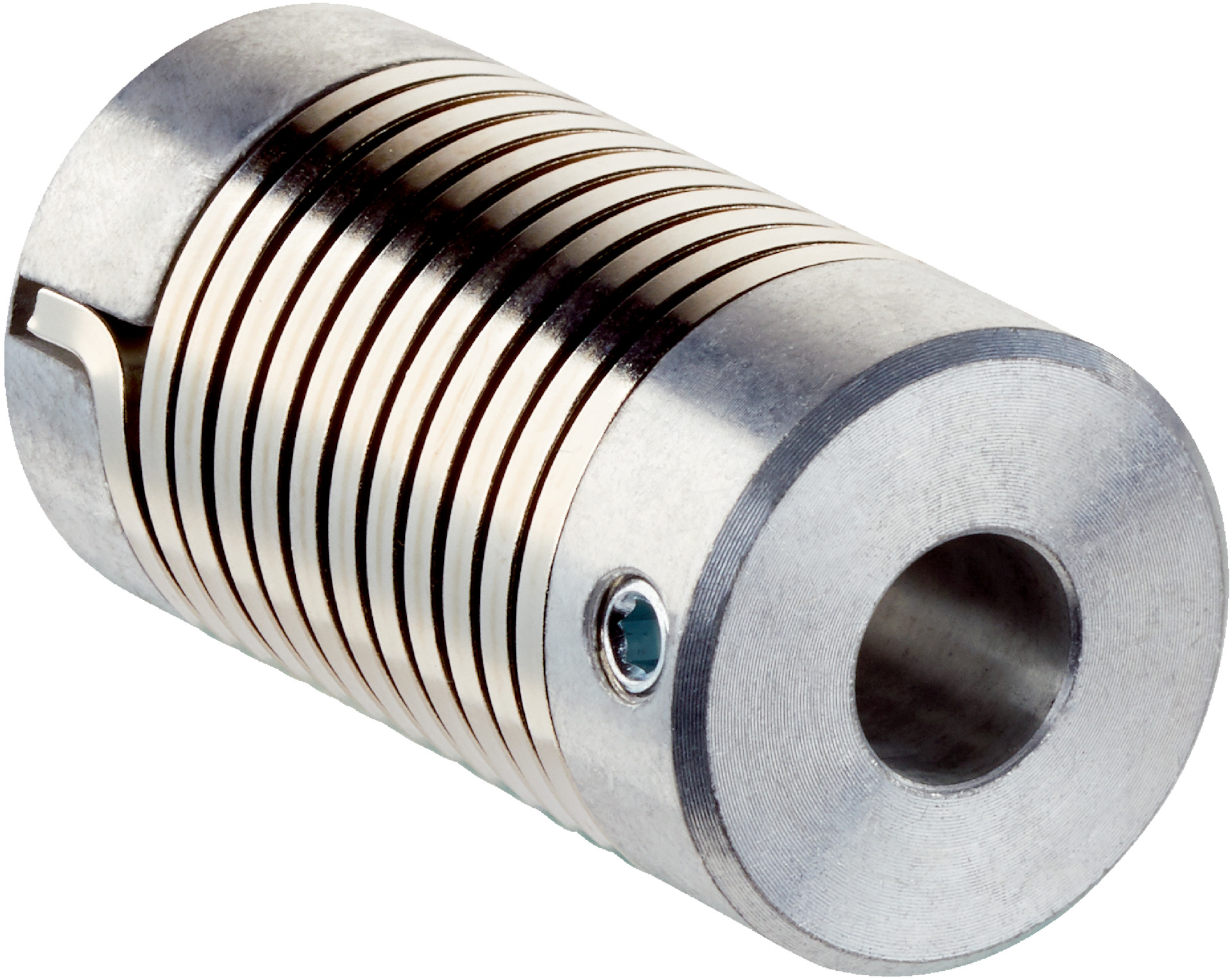

Spring Shaft Coupling 10mm | Nickel Plated | 300 Ncm Torque | 3000 RPM | by SICK
The Spring Shaft Coupling 10mm is designed for mechanical power transmission systems, offering a maximum speed of 3,000 rpm and a nominal torque of 300 Ncm. Ideal for industrial machinery and automation applications, this coupling features a flexible design with a temperature range of -40° to +120° Celsius, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°
- Maximum speed: 3,000 rpm
- Operating temperature: -40° to +120° Celsius
- Nominal torque: 300 Ncm
- Rotational angle at half nominal torque: 40° right, 60° left
- Material: spring steel 1.1200 nickel plated, hubs made of stainless steel 1.4305
- Dimensions (H x L x W): 30mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Spring coupling for shaft diameter 10 mm / 10 mm
- Maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°
- Maximum speed up to 3,000 rpm
- Operating temperature range from -40° to +120° Celsius
- Nominal torque of 300 Ncm
- Rotational angle at half nominal torque: 40° right, 60° left
- Material: spring steel 1.1200 nickel plated with stainless steel 1.4305 hubs
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and torque settings.
Applications
- Mechanical power transmission systems
- Shaft alignment and torque transfer in industrial machinery
- Automation and robotics requiring flexible shaft coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Nickel plating and stainless steel hubs provide corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1010-WSS spring shaft coupling is available for immediate purchase, ideal for industrial and automation machinery requiring reliable shaft adaptation.
