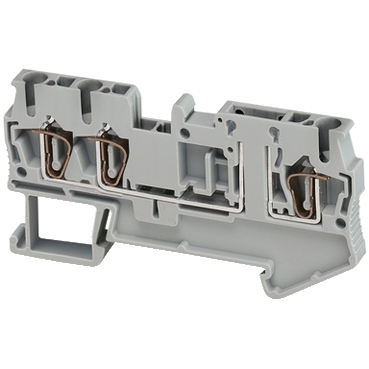

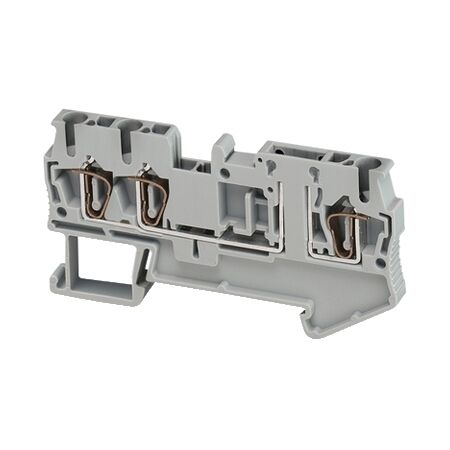

Spring Terminal Basic DISCONN | Spring Clamp Connection | DIN Rail Mount | 800V Rated | by Clipsal
The Spring Terminal Basic DISCONN is designed for secure and maintenance-free wiring with its innovative spring clamp connection technology. Ideal for industrial control panels and electrical distribution boards, this terminal block supports a rated voltage of 800V and a current of 24A, ensuring reliable performance in various applications. Its compact design allows for easy installation on DIN rails, making it a perfect choice for electricians seeking efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Terminal Basic DISCONN | Spring Clamp Connection | DIN Rail Mount | 800V Rated | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRR23TB
Alternatively Known As: Spring clamp terminal, DIN rail terminal block, Disconnect terminal, Clipsal terminal block, SCHNSYTRR23TB
Technical Specifications
- Connection type: Spring clamp
- Mounting: DIN rail
- Rated voltage: 800V
- Rated current: 24A
- Wire size: 0.2–4 mm² (24–12 AWG)
- Housing material: Polyamide (PA66), halogen-free
- Operating temperature: -40°C to +120°C
- Color: Grey
- Dimensions (H x L x W): 45mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Spring clamp connection technology for secure and maintenance-free wiring
- Tool-free wire insertion and removal
- Reliable electrical contact with vibration resistance
- Compact design for space-saving installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Switchboards
- General electrical installations requiring secure wire termination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces copper waste by enabling easy re-termination
- Long service life minimizes replacement frequency
- Halogen-free housing for safer disposal
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Spring Terminal Basic DISCONN SCHNSYTRR23TB is available for immediate purchase. Ideal for industrial and commercial electrical panels requiring reliable and maintenance-free wire connections.
