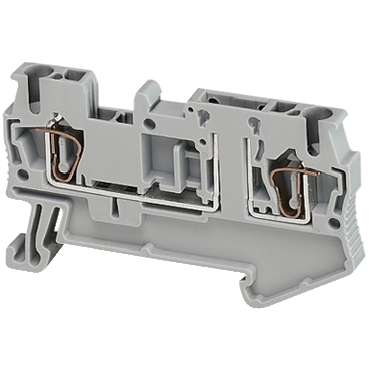

Spring Terminal Block | Removable Carrier Disconnect | 2 Connection Points | Grey Color | @Each of 1 | by Clipsal
The Spring Terminal Block is designed for secure and reliable connections, featuring a removable carrier disconnect for easy circuit isolation. With 2 connection points and accommodating conductors up to 4mm², it's perfect for industrial control panels and automation systems. Built for professionals, this terminal block ensures compliance with Australian standards and offers tool-free wiring with spring clamp technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Terminal Block | Removable Carrier Disconnect | 2 Connection Points | Grey Color | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRR22TB
Alternatively Known As: Spring terminal block, disconnect terminal, Linergy TR terminal, removable carrier terminal, SCHNSYTRR22TB, Clipsal terminal block
Technical Specifications
- Type: Spring terminal block
- Series: Linergy TR
- Function: Removable carrier disconnect
- Number of connection points: 2
- Conductor size: Up to 4mm²
- Color: Grey
- Mounting: DIN rail
- Rated voltage: 800V
- Rated current: 32A
- Insulation material: Polyamide 6.6
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 47mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Spring terminal block for secure and reliable connections
- Removable carrier disconnect for easy circuit isolation
- 2 connection points for flexible wiring
- Accommodates conductors up to 4mm²
- Grey color for standard circuit identification
- Tool-free wiring with spring clamp technology
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Switchboards
- Machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Tool-free spring connection reduces installation time and energy use
- Durable materials ensure long service life, minimizing replacement waste
- RoHS compliant, free from hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Linergy TR Spring Terminal Block SCHNSYTRR22TB is available for immediate purchase. Ideal for industrial control panels, automation systems, and electrical distribution boards.
